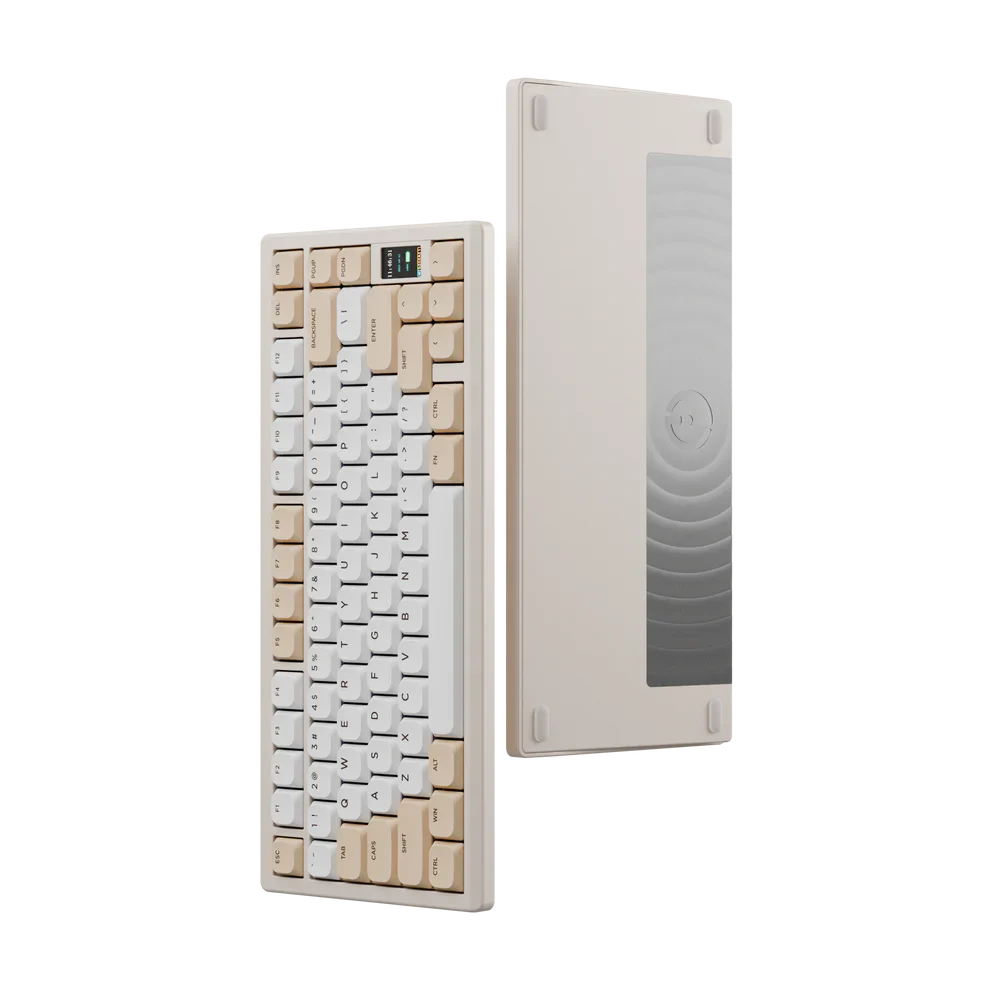

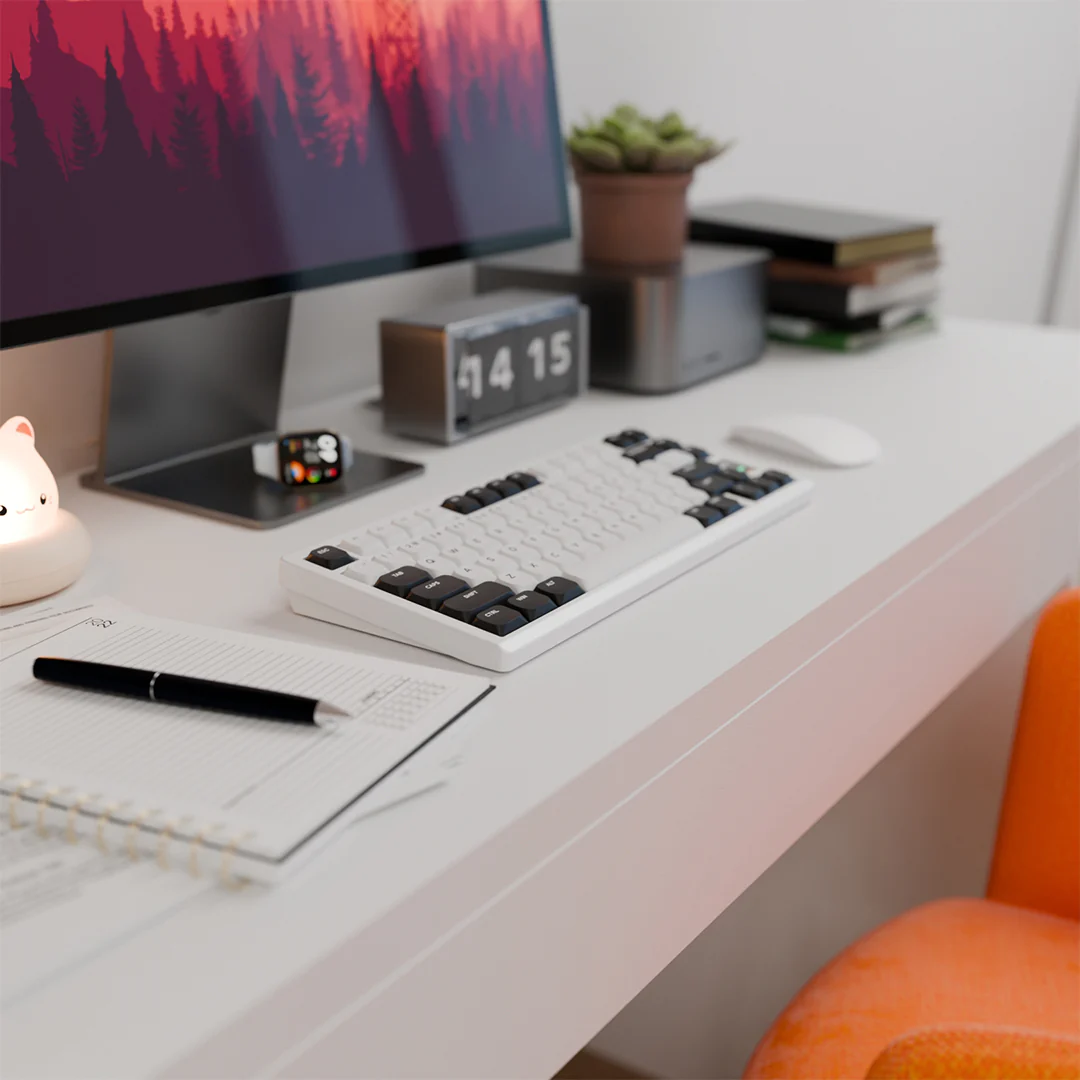

[In Stock] Chilkey ND75 LP Keyboard (Assembled Edition)

Product Specification

Keyboard Layout : 75%
Case Material : Aluminium
Case Color :
Anodization - Jet Black，Lavender，Silver
Electrophoretic - Pure white, Baby Blue, Milk Tea
Back Plate Material : Aluminium

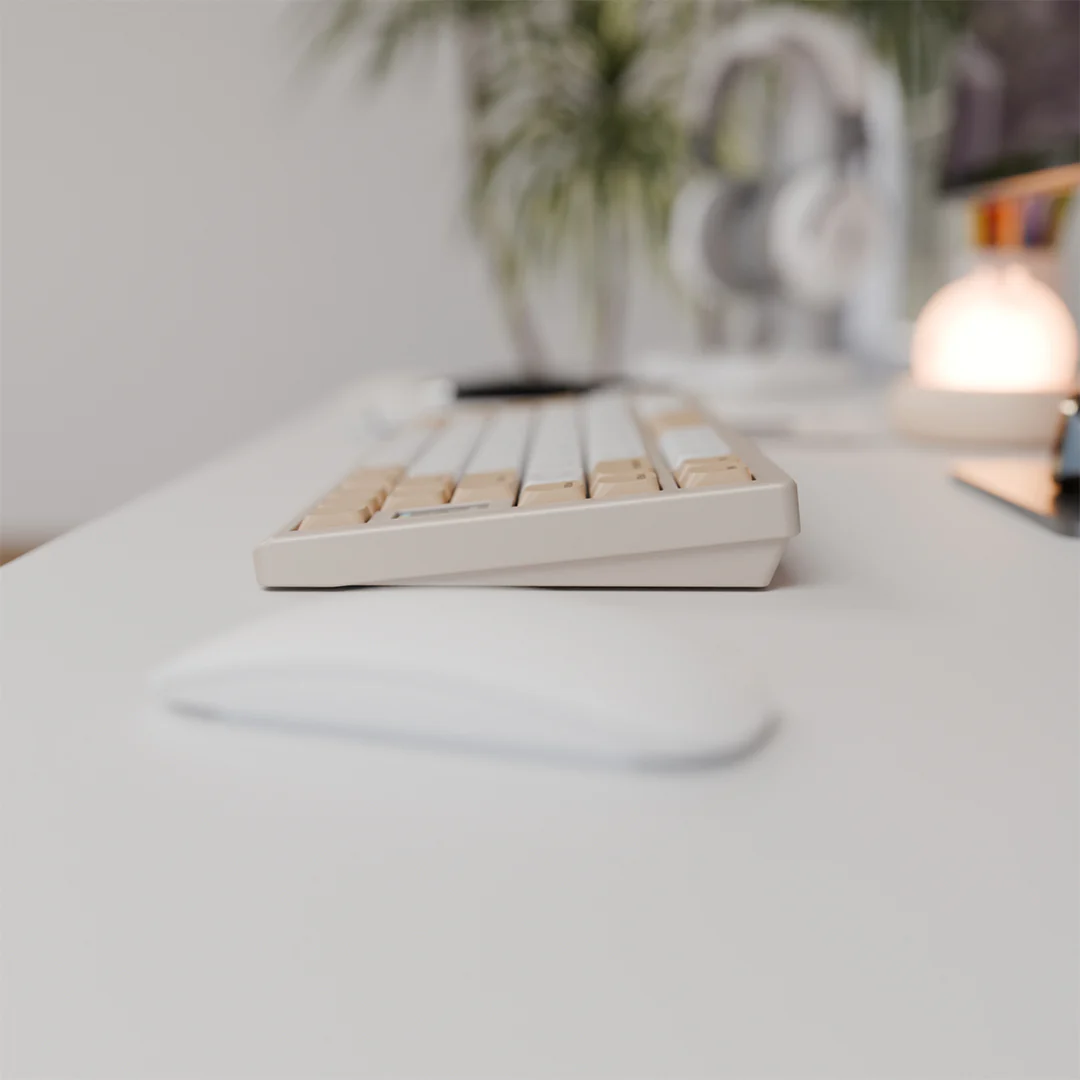

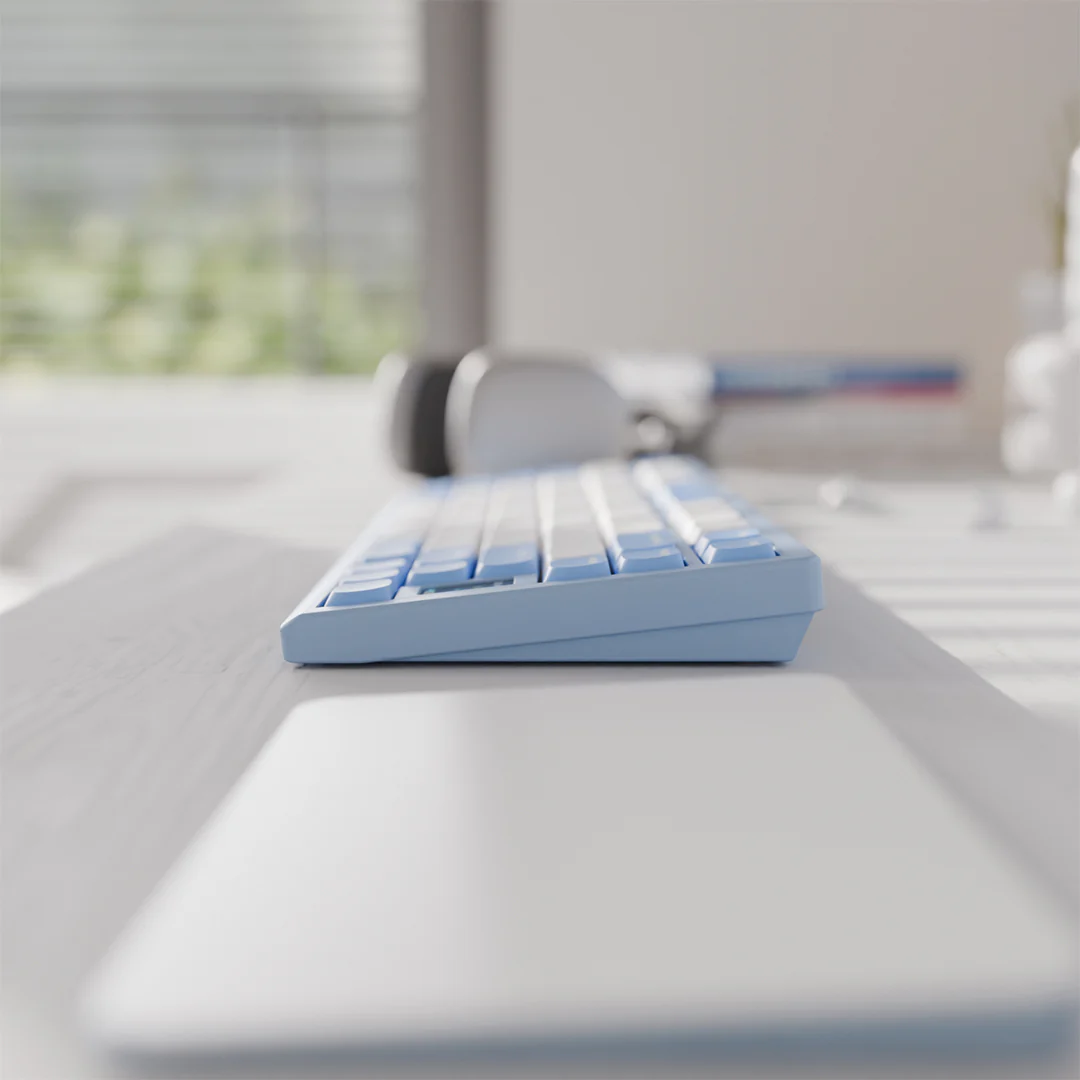

Typing Angle : 6.5°
Front Height : 9.3mm
Back Height : 26.6mm
Mounting Style :
-Gasket
-Top
Dampening Foam : 5 Foam Layers
Stabilizer Type : Plate Mount
Support RGB : Yes
Switch Type : South Facing LED Switch
Default Plate : FR4
Plate Thickness : 1.2mm
Battery Type : lithium battery
Battery Capacity : 1800*2
PCB Material : FR4
PCB Thickness : 1.2mm Non Flex-cut
ANSI Support : Yes
VIA/QMK Support  : N/A
Driver Type : Self-developed Web Driver
Supports N-Key Rollover : Yes
Hotswap Support     : Yes
Bluetooth Version : 5.3
Bluetooth Support Mode : BL1
PCB : Tri-mode
Dimensions : 322*138.5*26.6mm
Bluetooth PCB Polling Rate : 125
2.4GHz Polling Rate : 1k
Wired Polling Rate : 1k
OS Compatibility : WIN/MAC

Switch Specifications

Top Housing Material : POM
Bottom Housing Material : POM
Stem Material : POM
Lubed : Factory lubed
Total Travel : 3.0±0.2mm
Pre-Travel : 1.8±0.3mm
Actuation Force : 45gf
Preload : 38±5gf
Bottom-out Force : 52gf
Lifespan : 50 Million Key Strokes
Keycap Material : PBT
Keycap Technology : Doubleshot
Keycap Profile : LSA
Keys QTY : 80 keys

ND75 LP Mechanical Keyboard Tri-Mode Operation Instructions

Introduction

The World's First Low-Profile Keyboard with Full CNC Alu Case, Magnet Mount, Vibrant
Colors, LCD Screen, Switch & Gasket Mount.

The Perfect Balance of Elegance and Power

The ND75 LP is our first fully aluminum low-profile mechanical keyboard, merging aesthetics with functionality.
It's not just a typing tool, but a stylish addition to your workspace.
