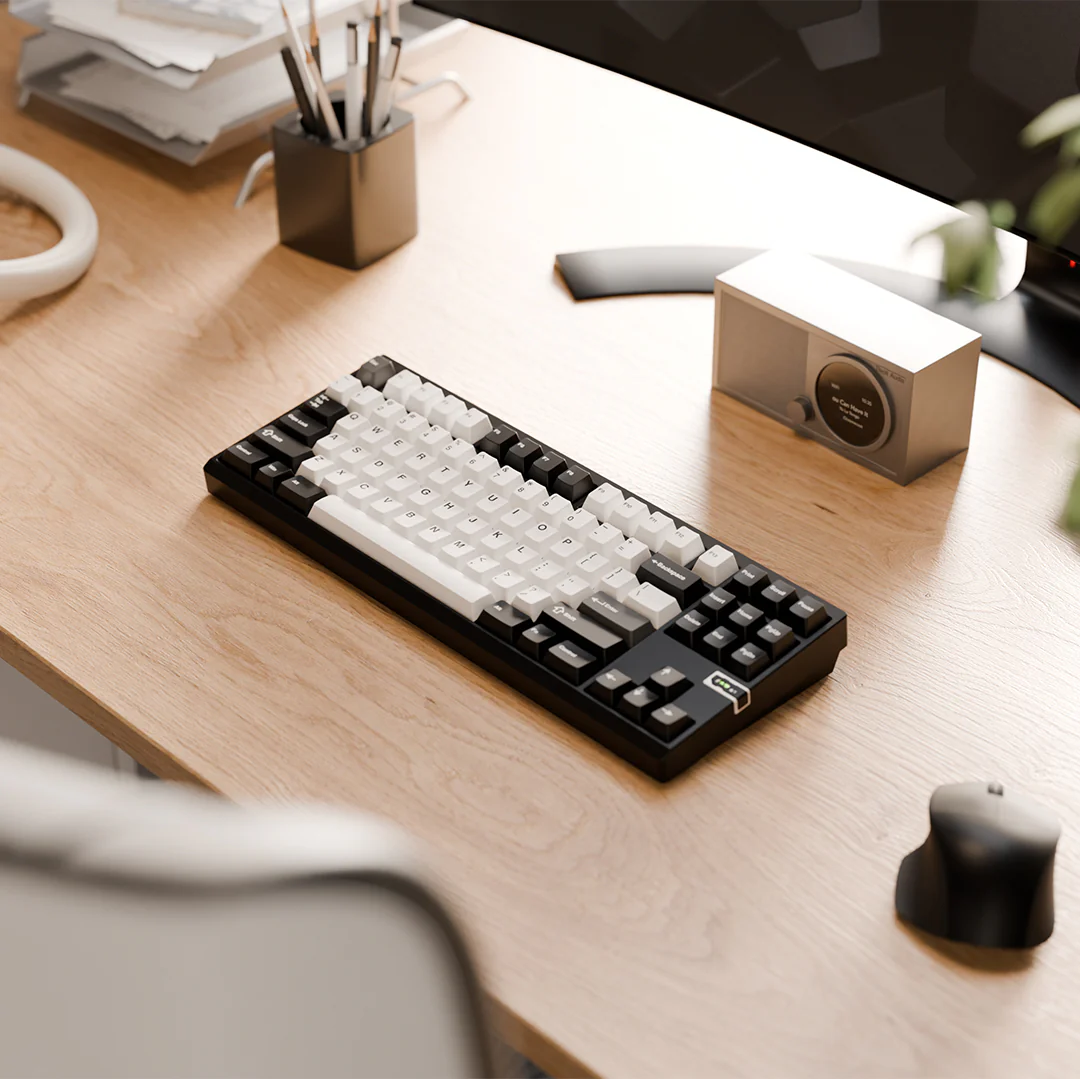

[In Stock] Chilkey ND TKL Keyboard (Assembled Edition)

Product Information

Keyboard Layout：80%
Case Material：Aluminium
Case Color：

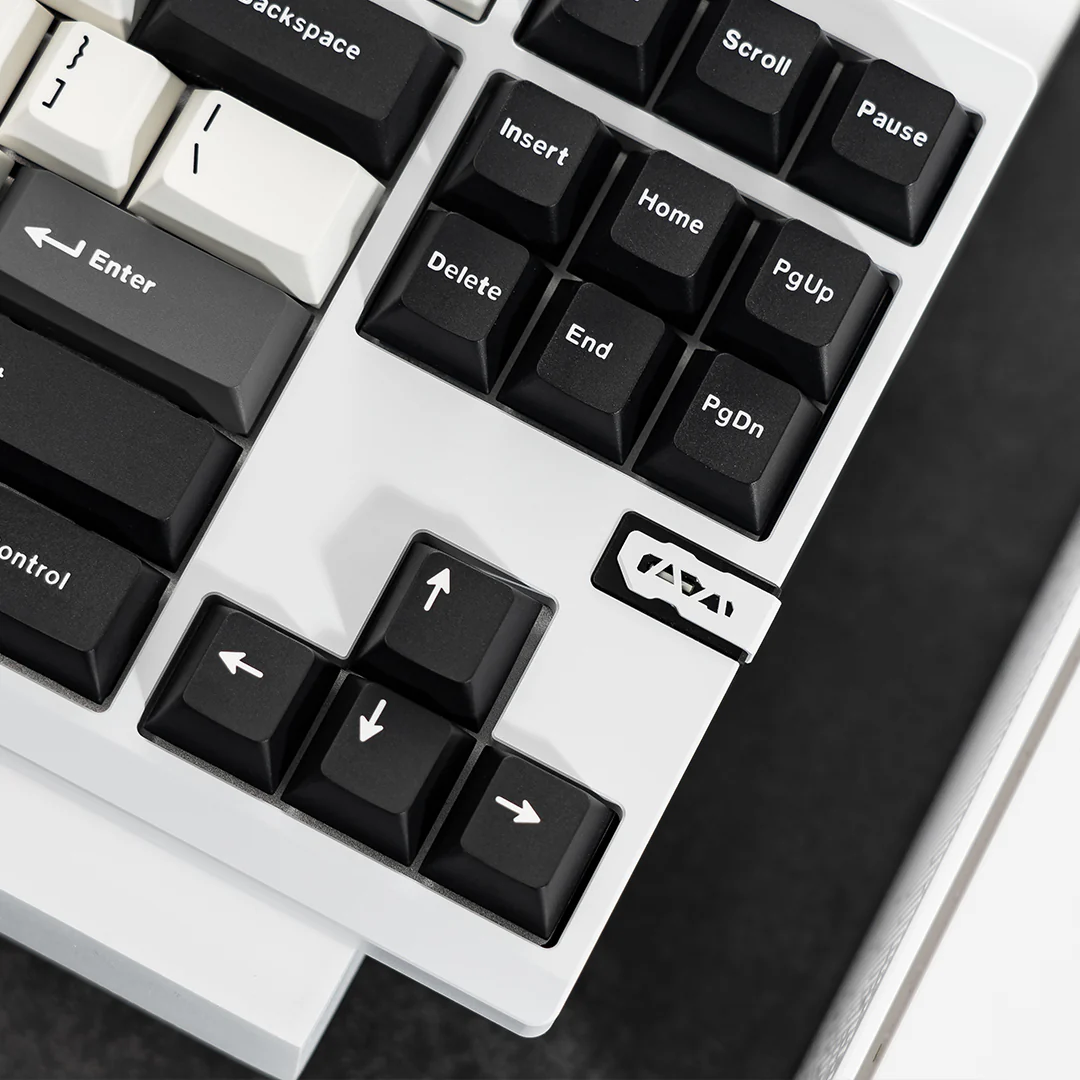

Anodization - Jet Black

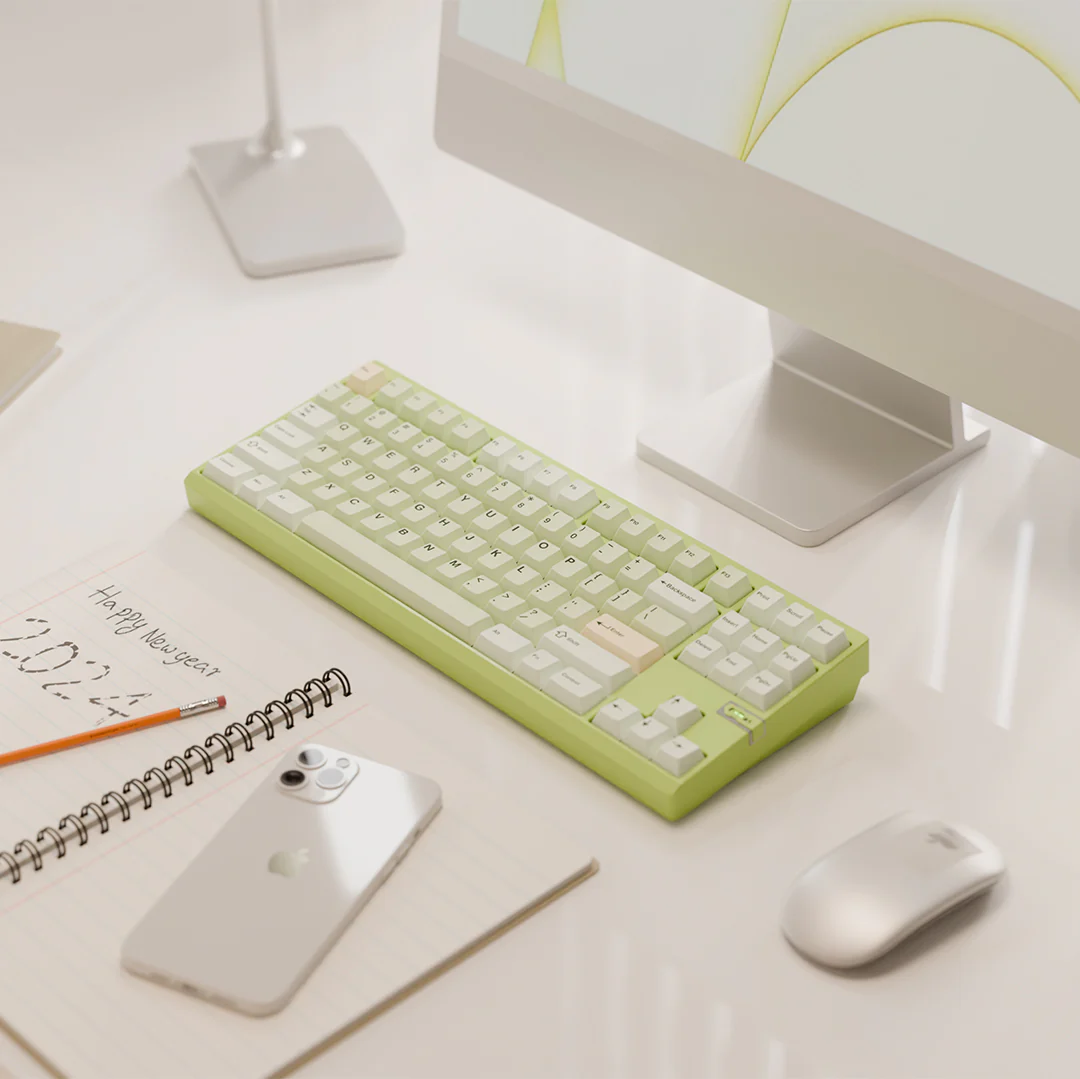

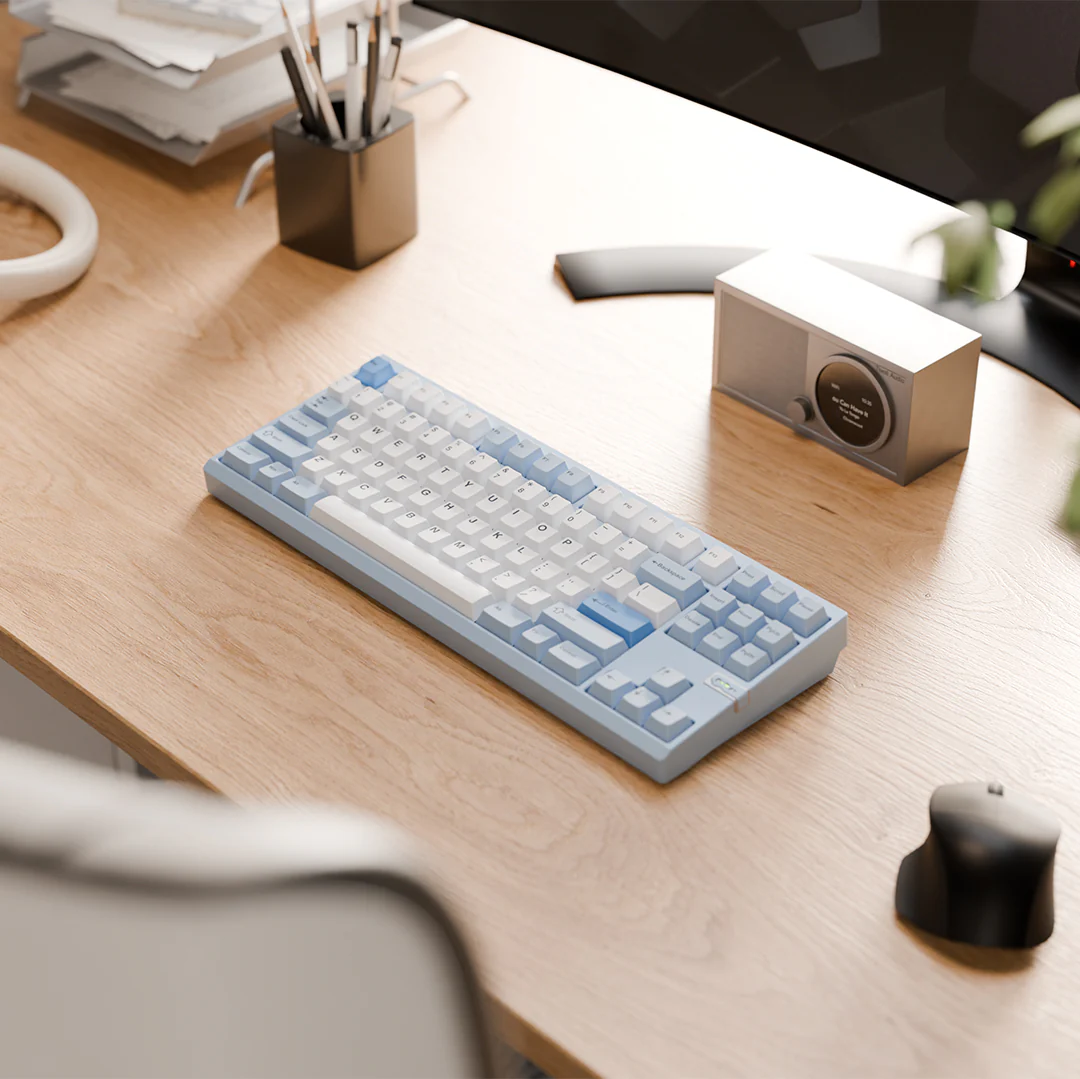

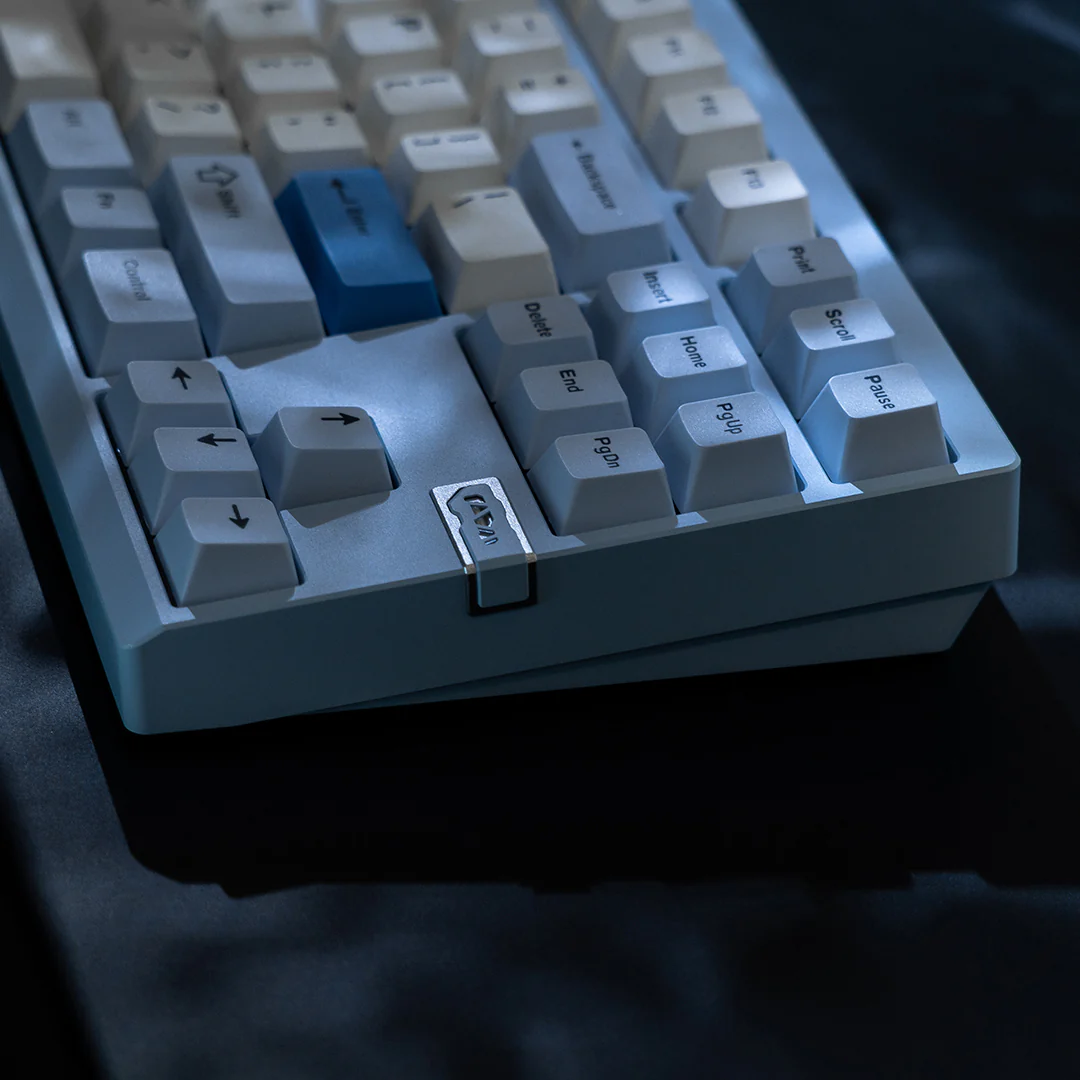

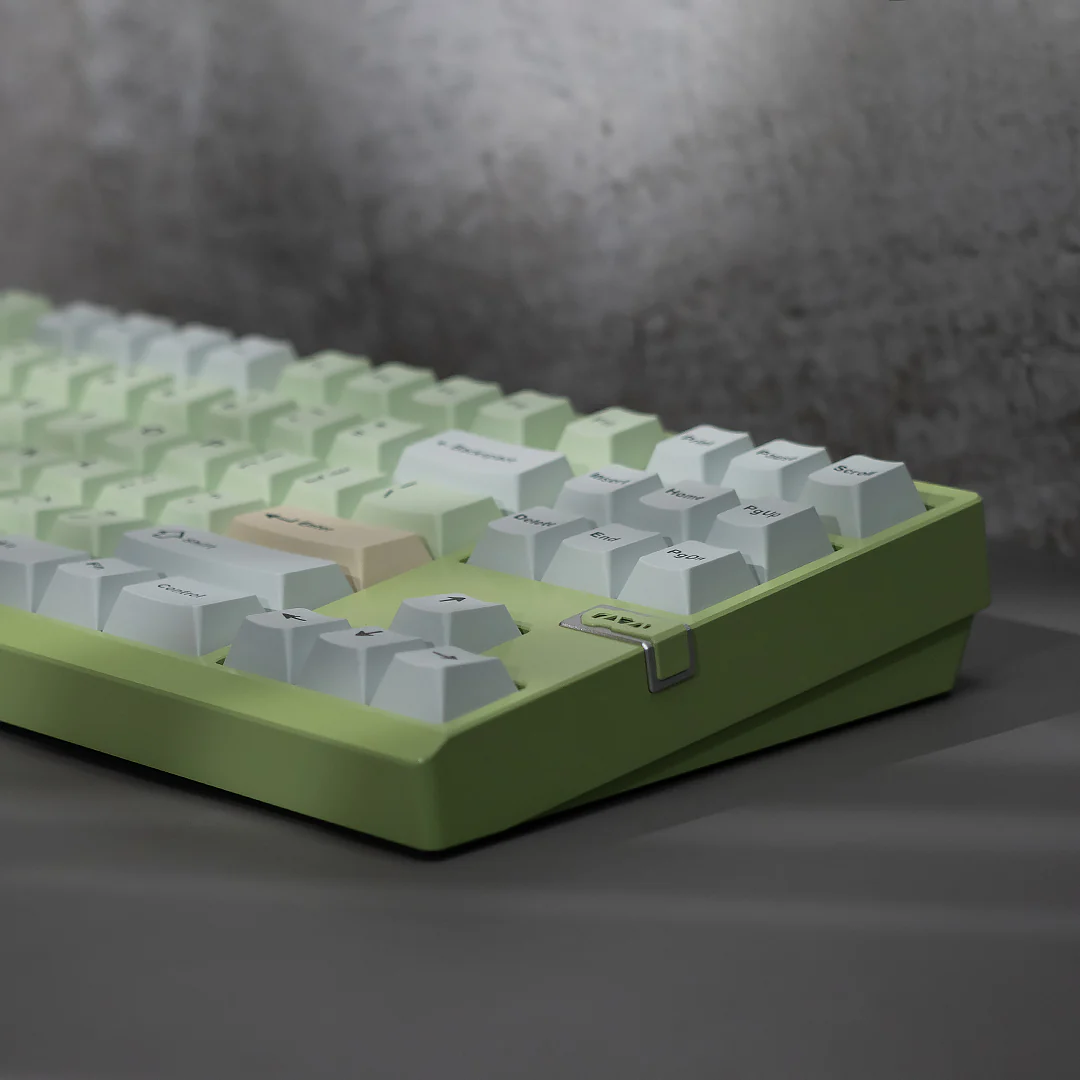

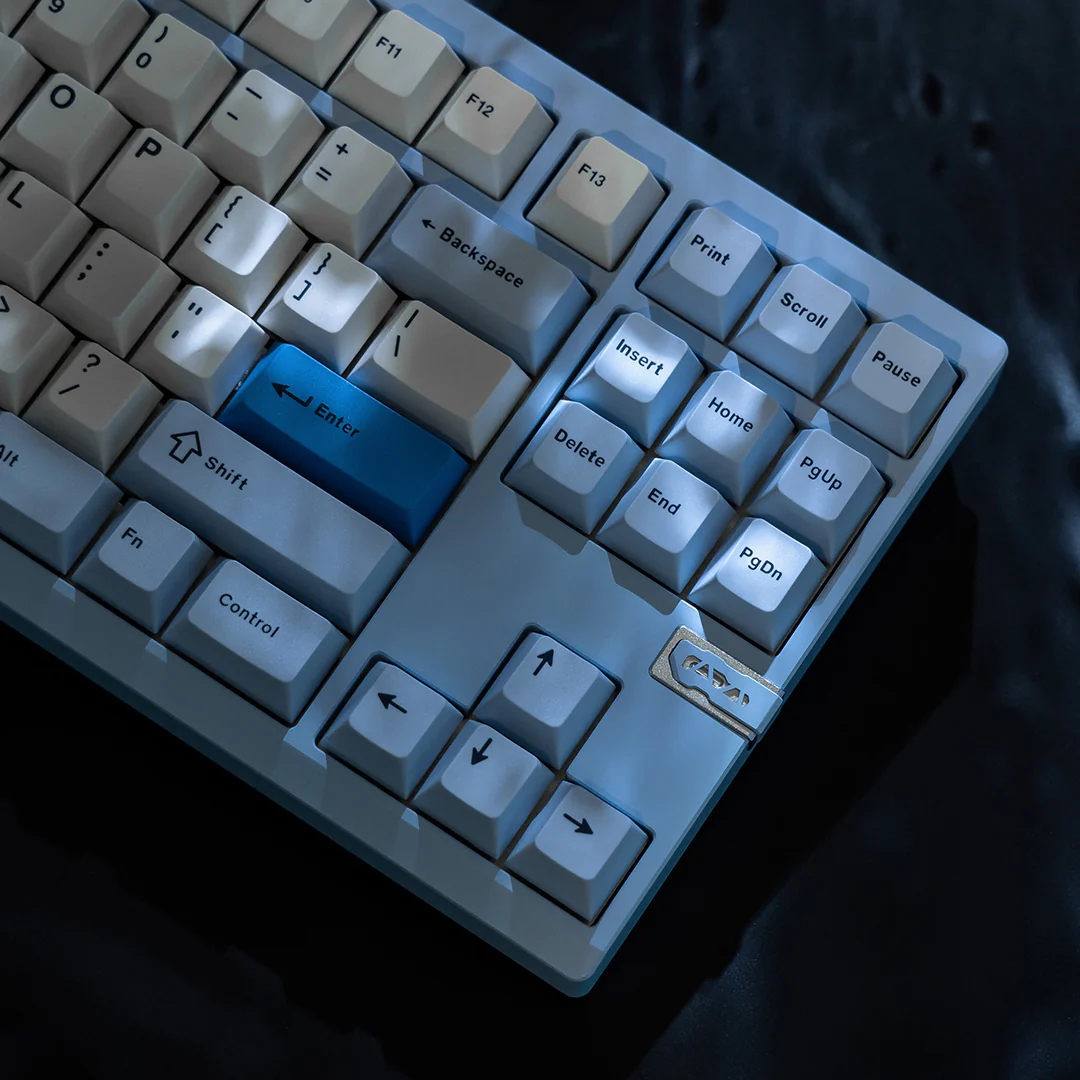

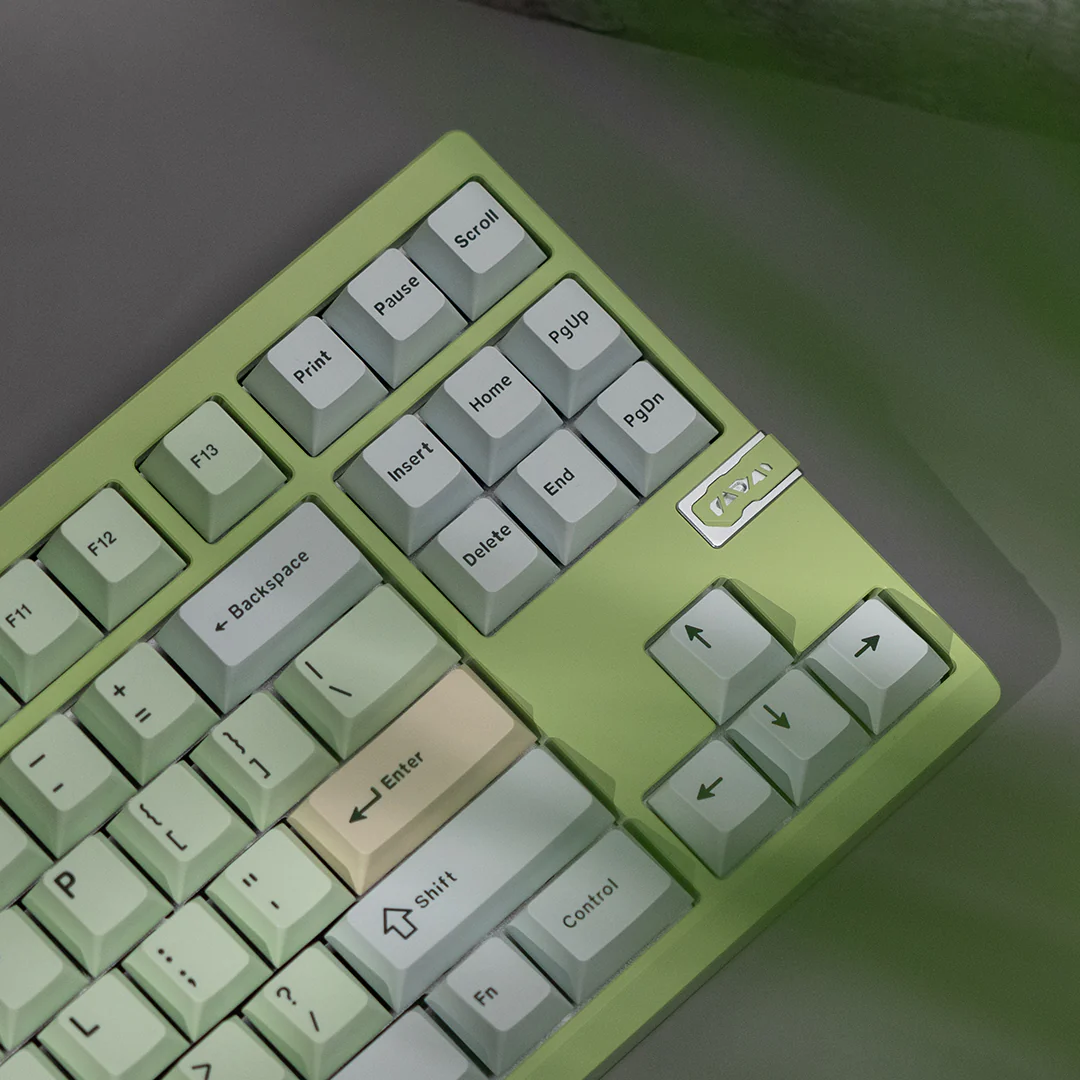

Electrophoretic - White, Sky Blue, Milky Green

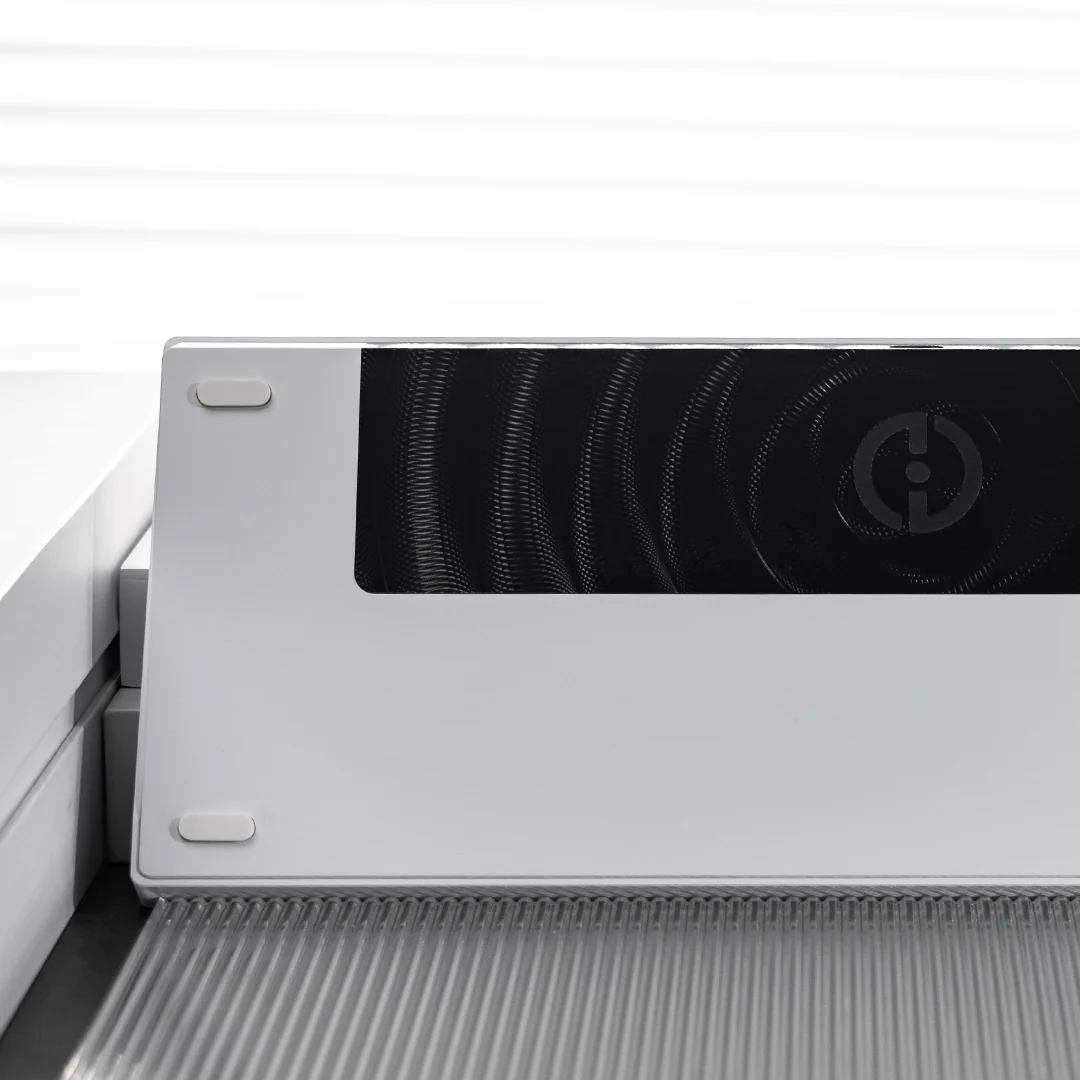

Back Plate Material：Aluminium

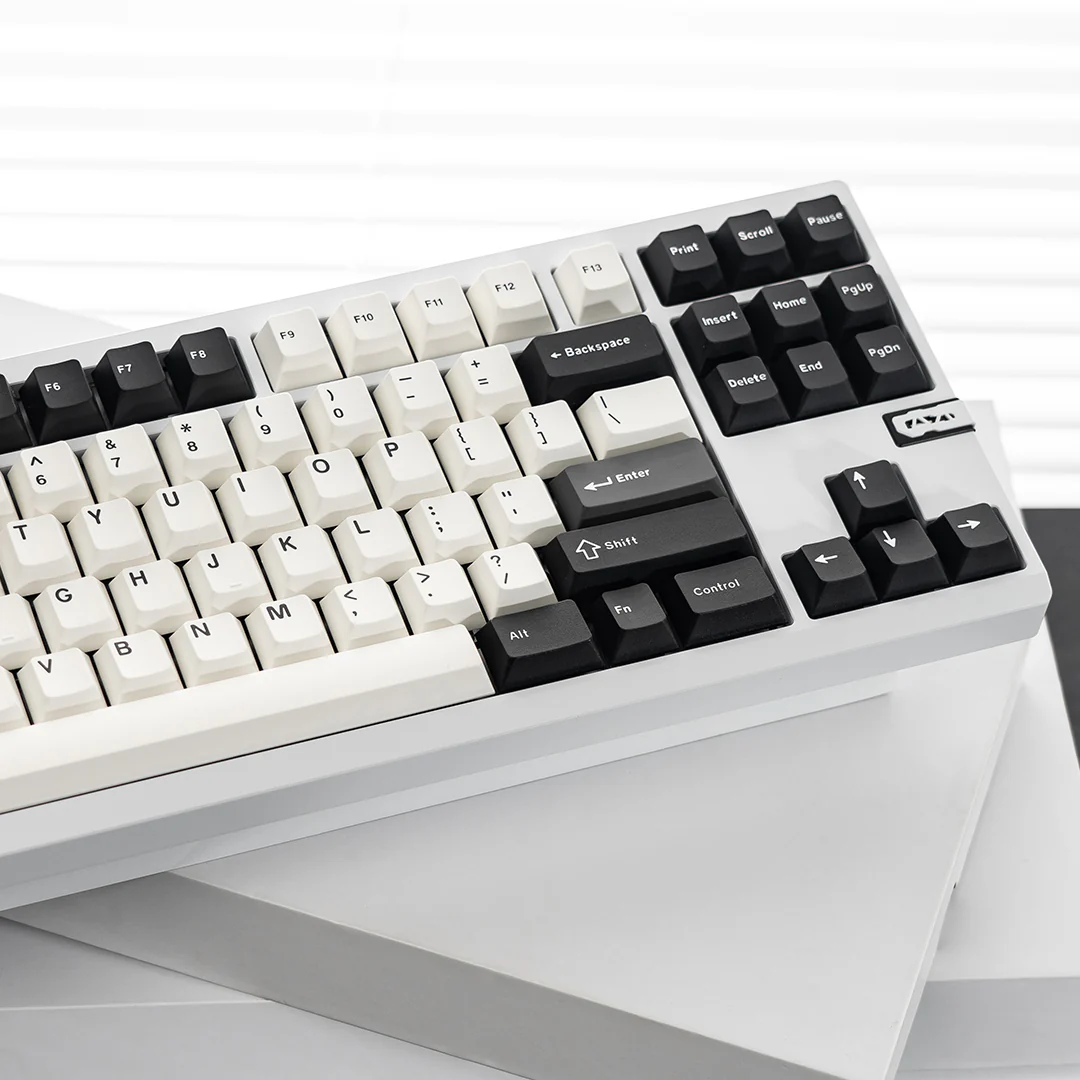

Typing Angle：6.5°
Front Height：17.4mm
Back Height：33.8mm
Mounting Style：
- gasket
- Elastic Silicone Mount
Dampening Foam：4 Foams Foam Layers
Stabilizer Type：Plate Mount
Support RGB：Yes
Switch Type：South Facing LED Switch
Switch: Kailh Blue Lotus (Linear)
Default Plate：PC/Alu
Battery Type：Lithium Battery
Battery Capacity：1800*2
PCB Thickness：1.2mm Flex Cut/1.6mm Non Flex-cut
ANSI Support：Yes
VIA/QMK Support：N/A
Driver Type：Self-developed Web Driver
Supports N-Key Rollover：Yes
Hotswap Support：Yes
Bluetooth Version：5.3
PCB：Tri-mode
Dimensions：357.3*138.3*33.8mm
Bluetooth PCB Polling Rate：125
2.4GHz Polling Rate：1k
Wired Polling Rate：1k
OS Compatibility：WIN/MAC
Top Housing Material：PC
Bottom Housing Material：PA66
Stem Material：POM
Lubed：Factory lubed
Total Travel：3.5mm
Pre-Travel：1.9mm
Preload：45±10gf
Bottom-out Force：50±10gf
Lifespan：50 Million Key Strokes
Keycap Material：PBT
Keycap Technology：Doubleshot
Keycap Profile：Cherry
Keys QTY：87 keys

ND75 TKL Mechanical Keyboard Tri-Mode Operation Instructions

Introduction

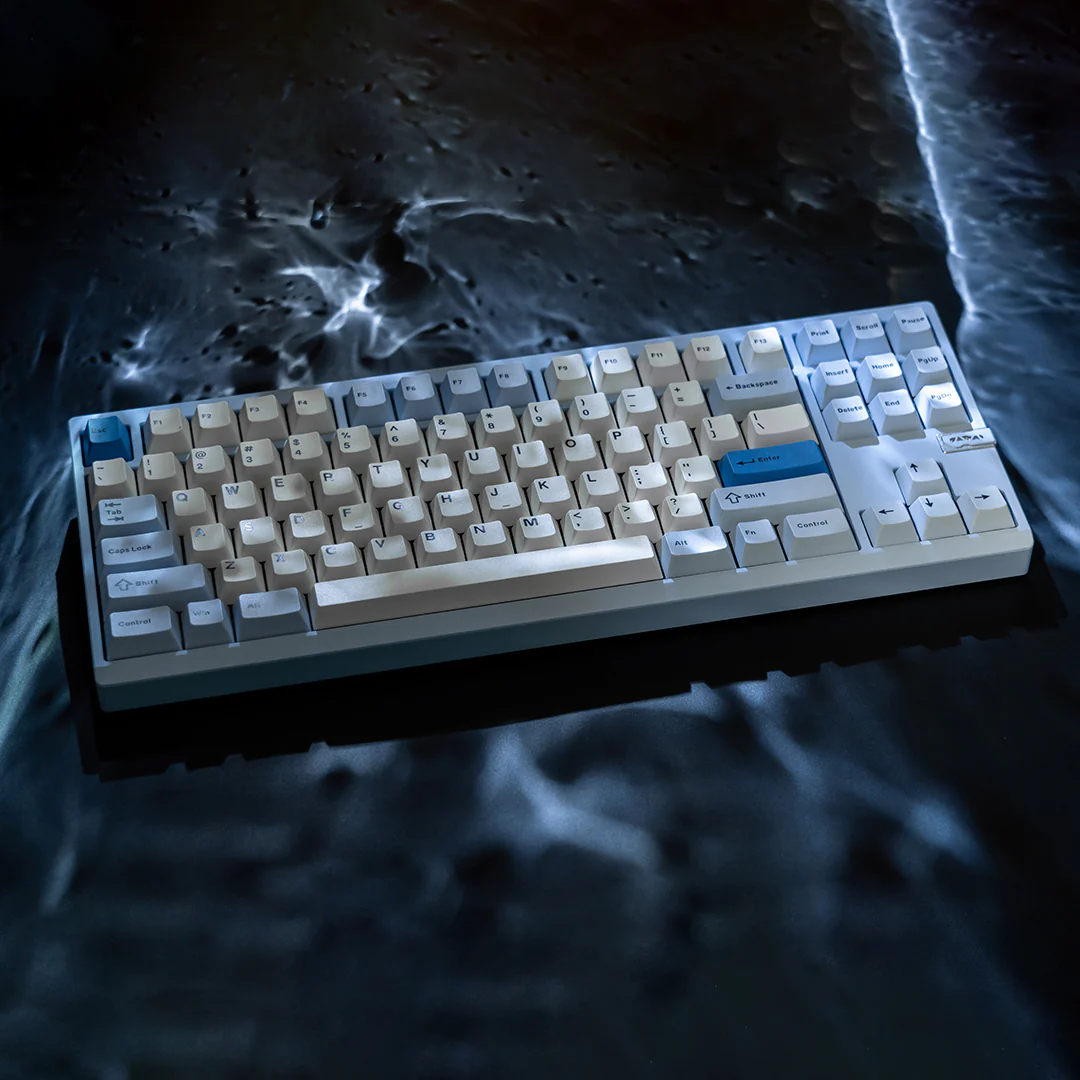

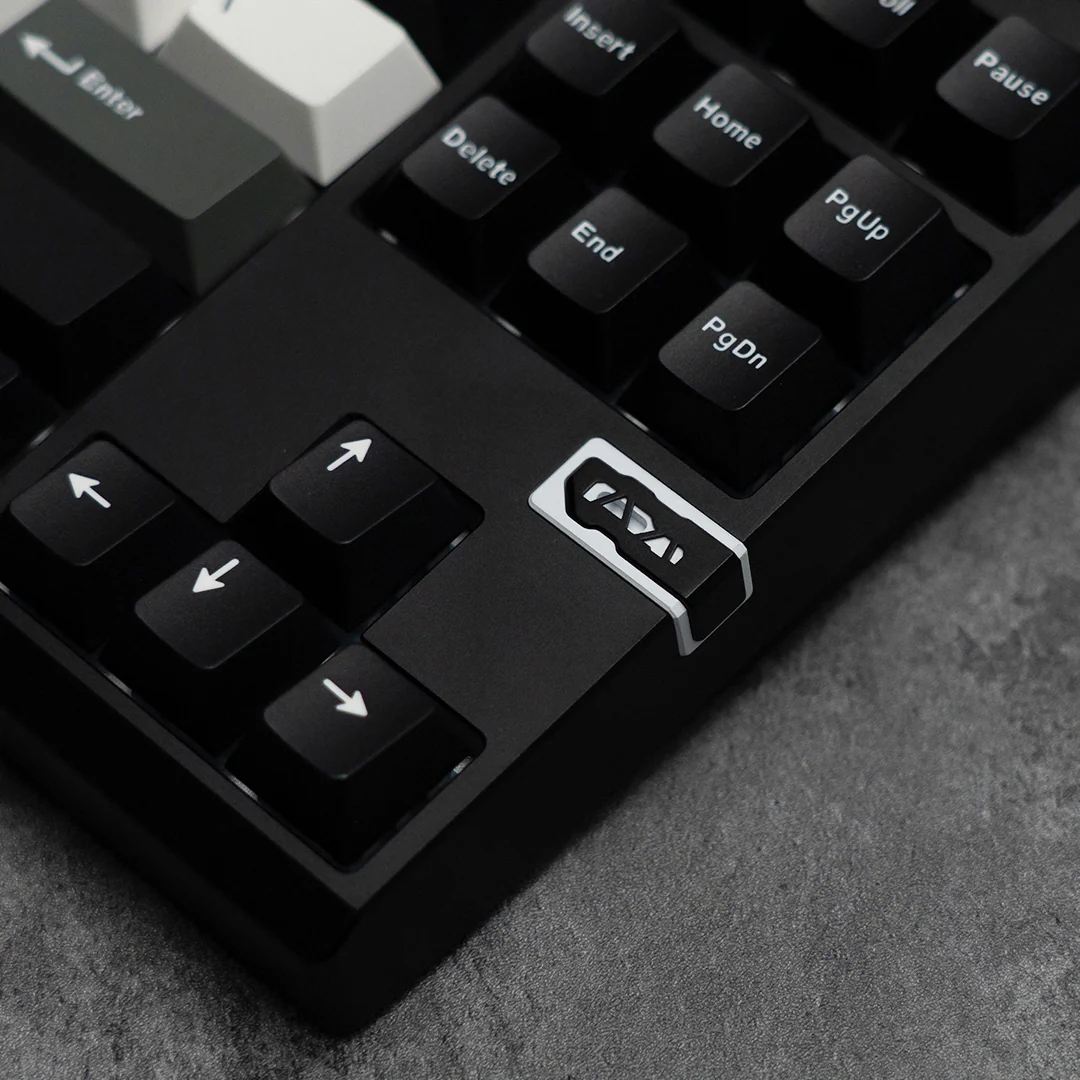

Four-Color Alu Keyboard

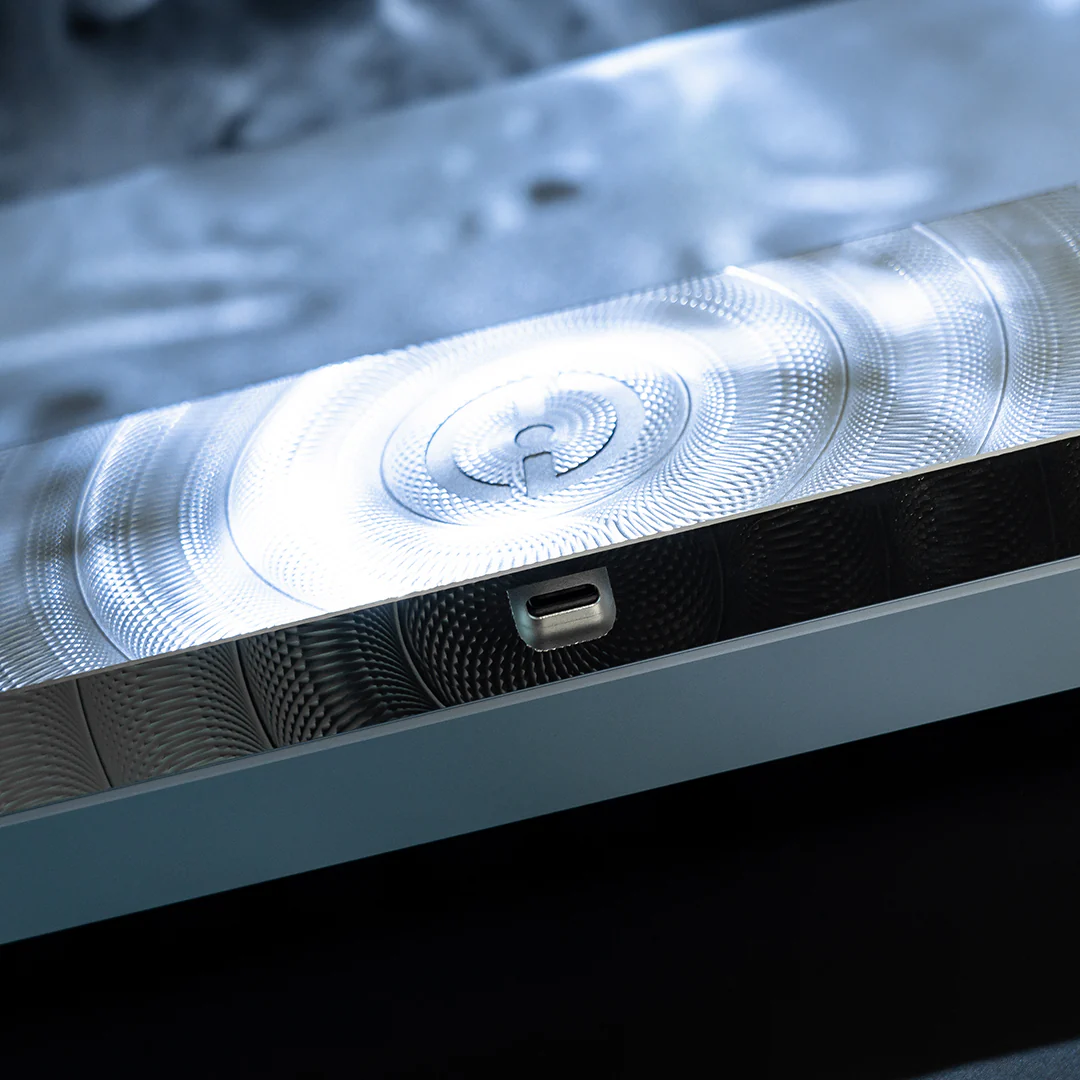

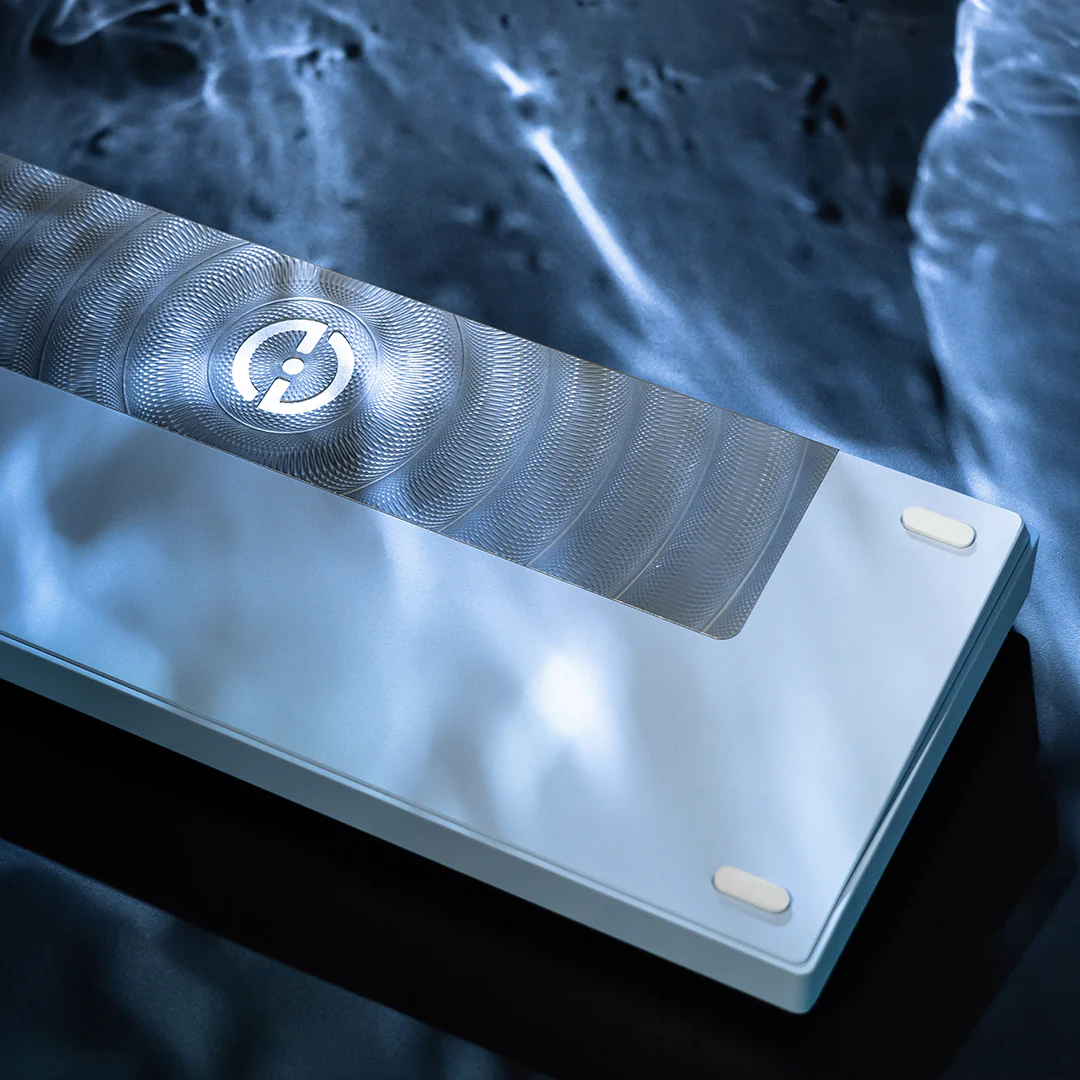

Full aluminum CNC case with four color options, combining aesthetics and practicality.

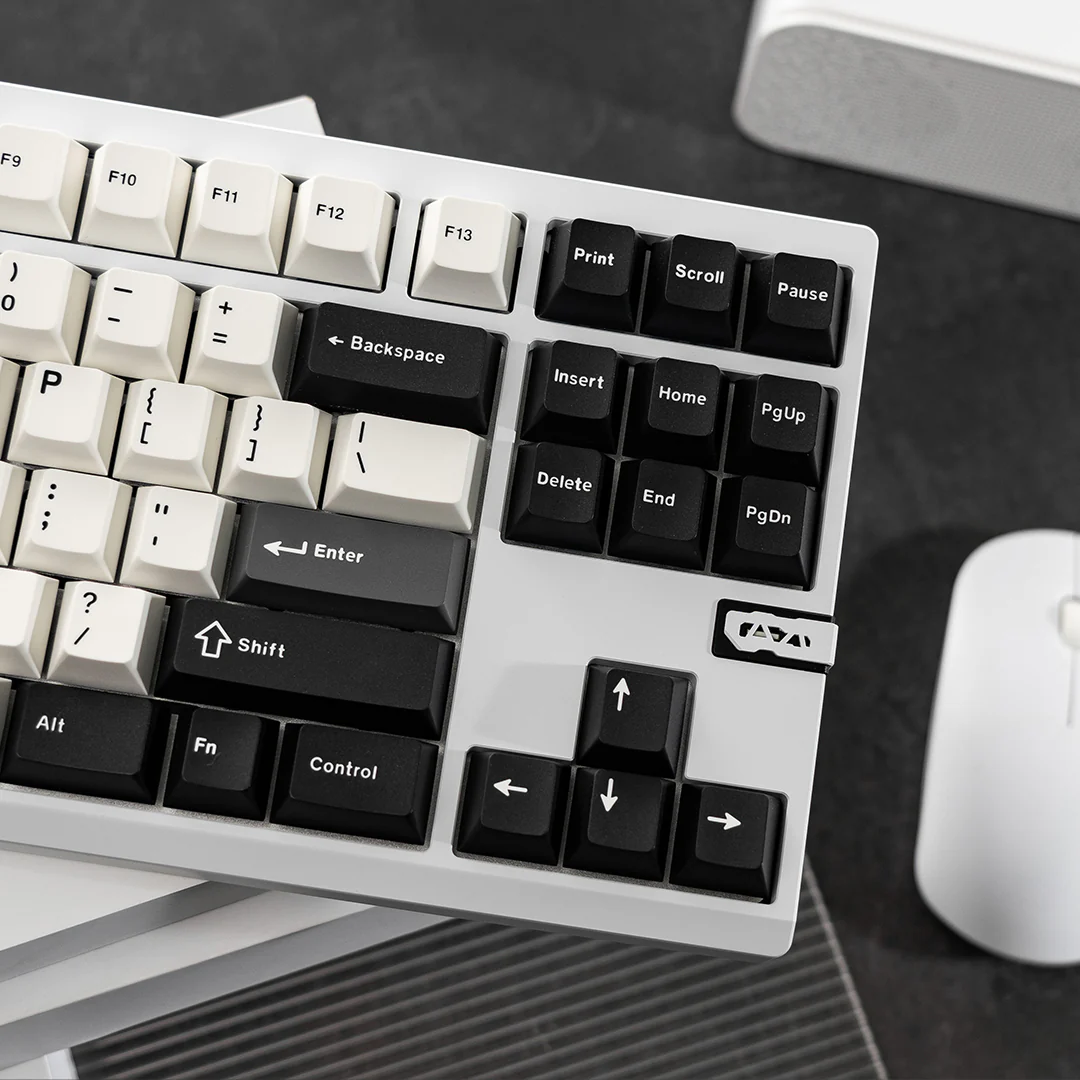

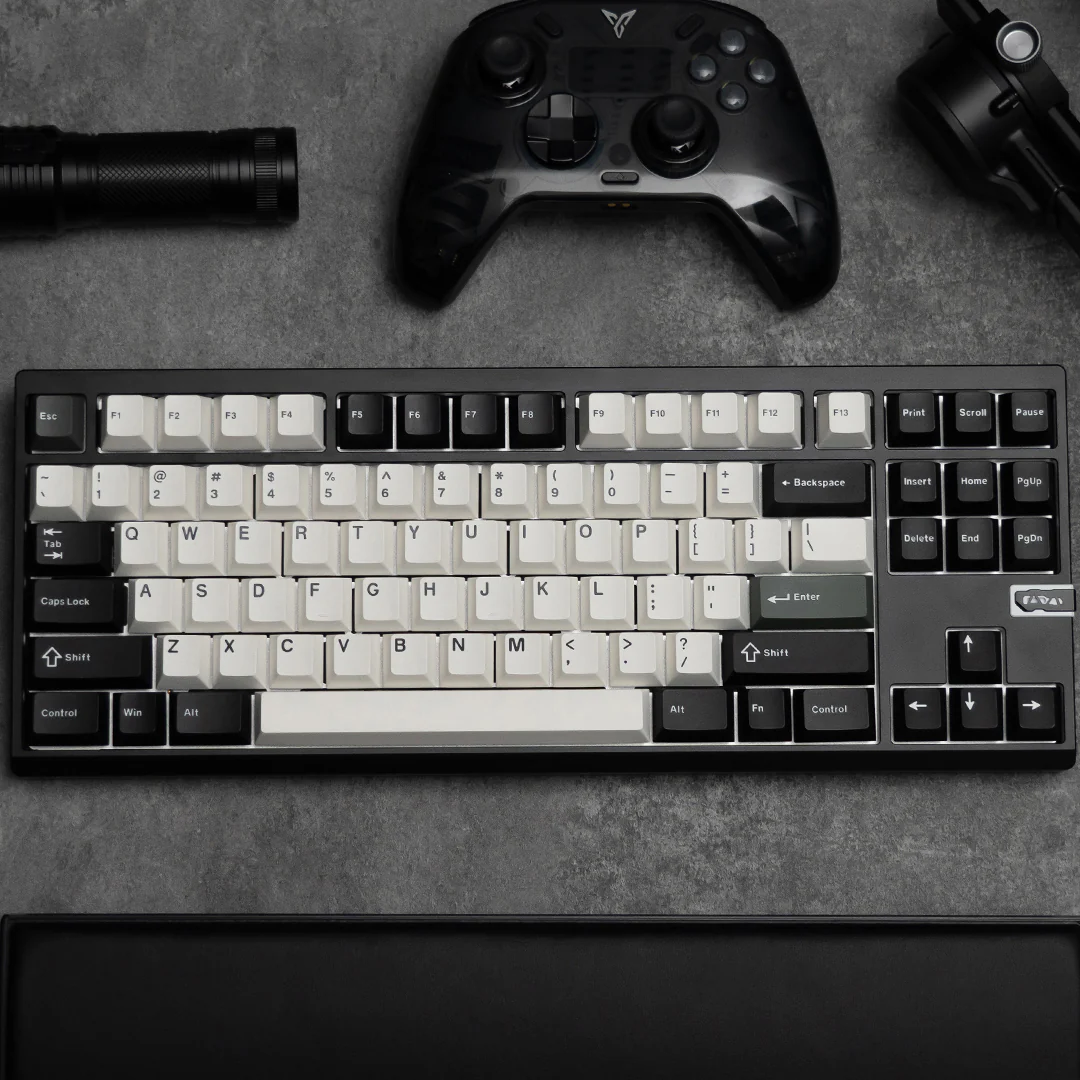

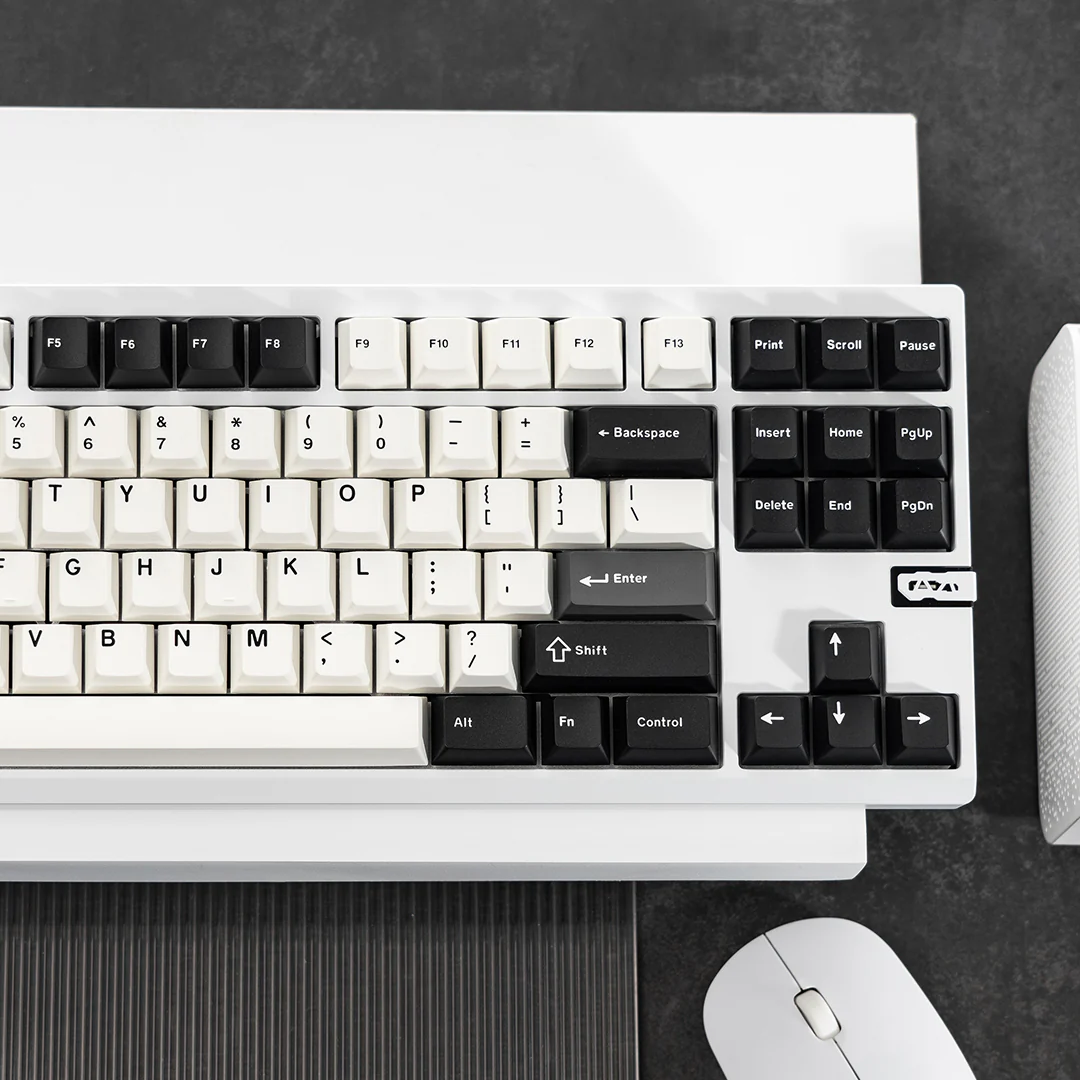

87-Key Keyboard
87-key keyboard features a compact design that perfectly fits various desktop setups, saving space while enhancing work efficiency.

Three-Color Keycaps
The keycaps are designed with three distinct colors, creating a bold and fashionable look that stands out.

Custom RGB Effects
Our custom driver allows you to control the RGB effects on each key, personalizing your typing experience.

2 Mounting Systems
