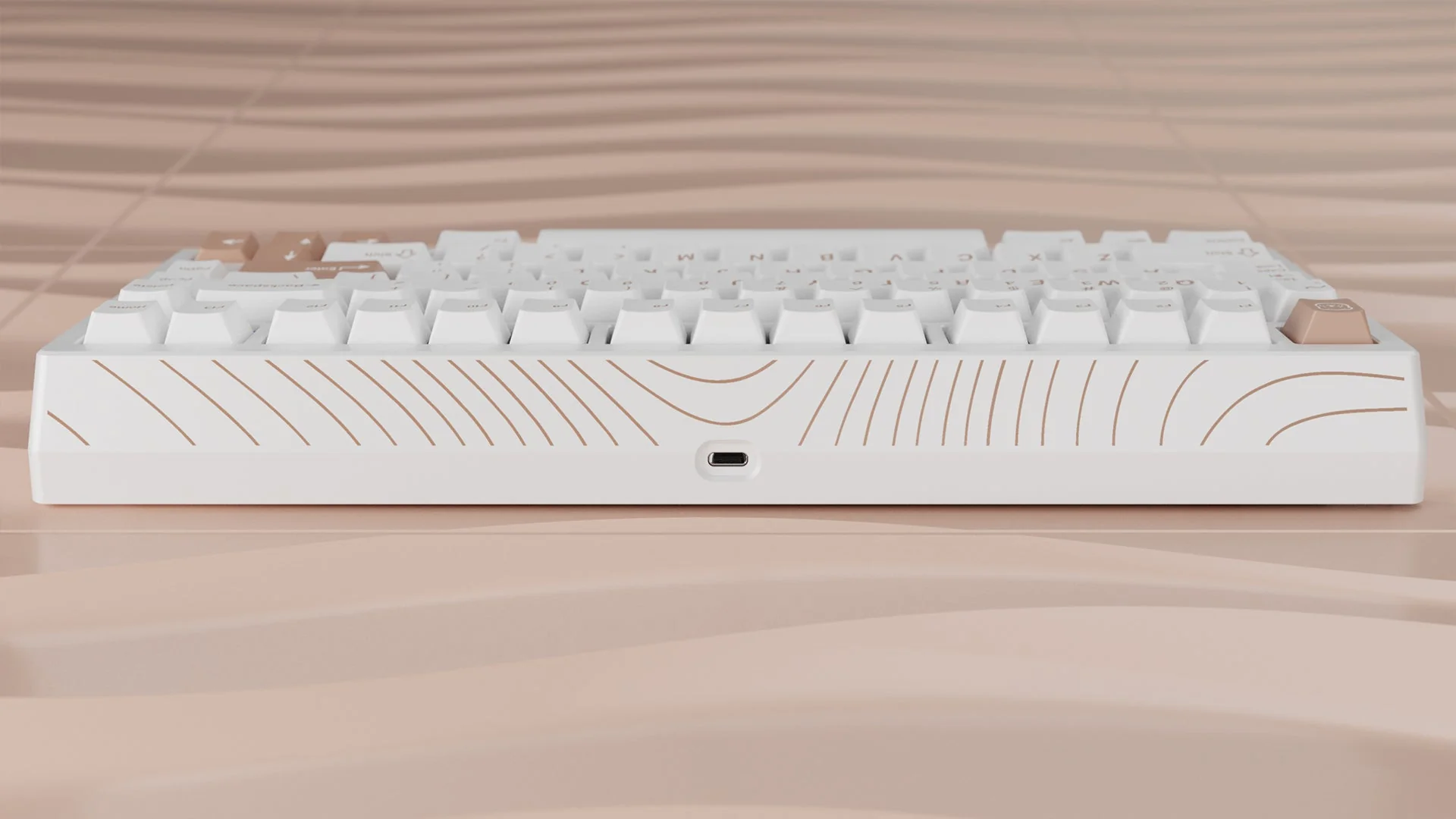

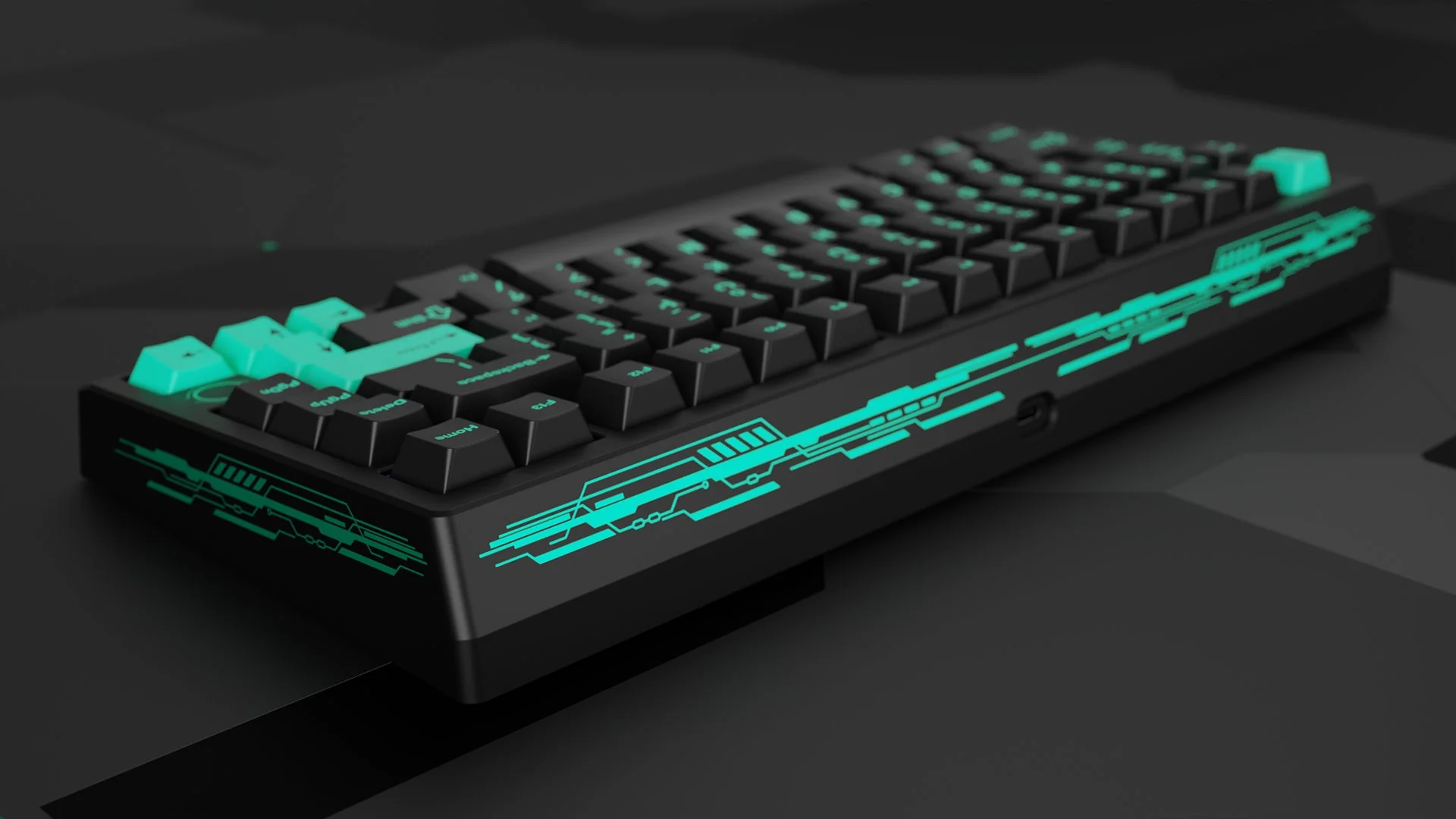

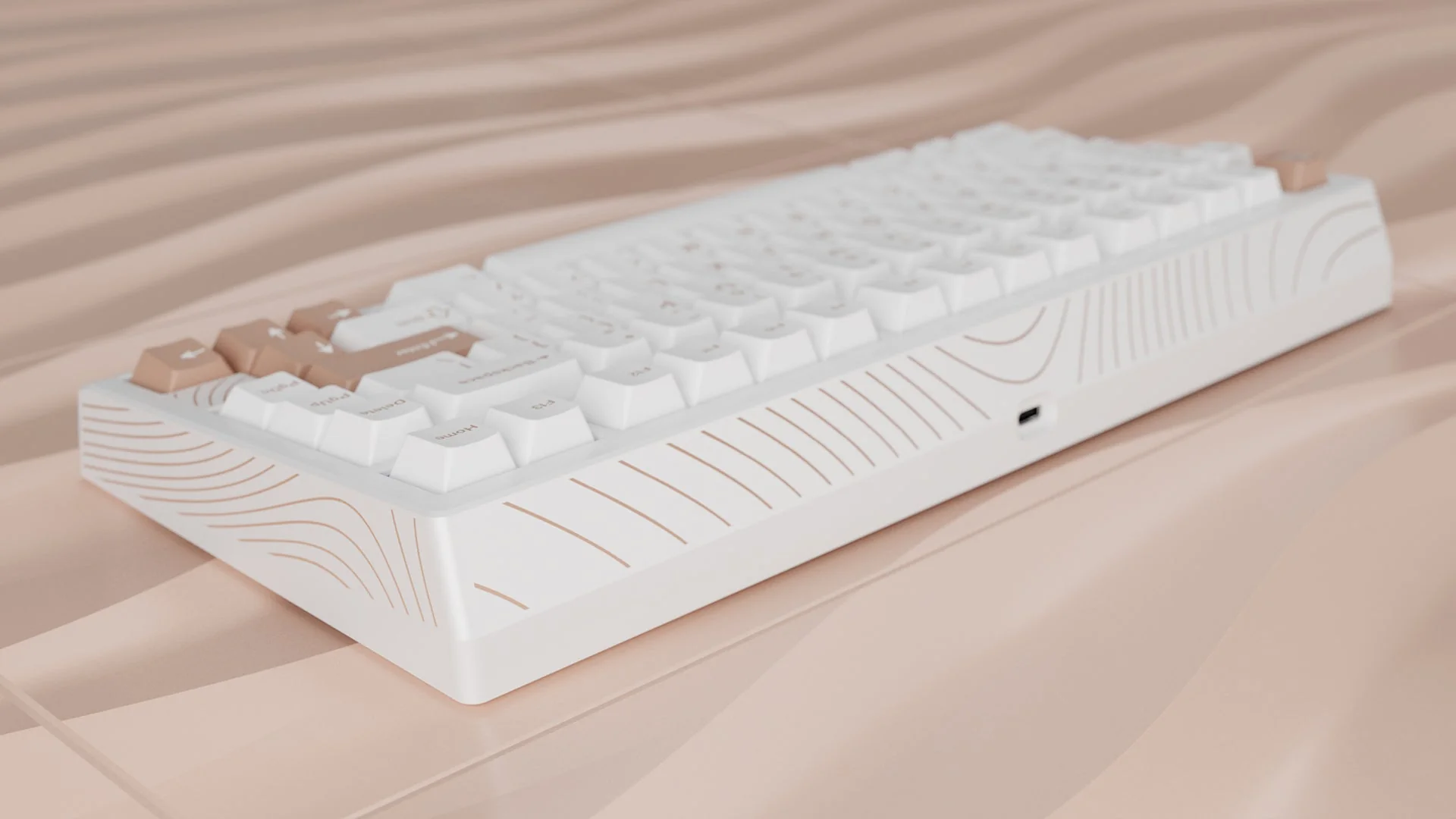

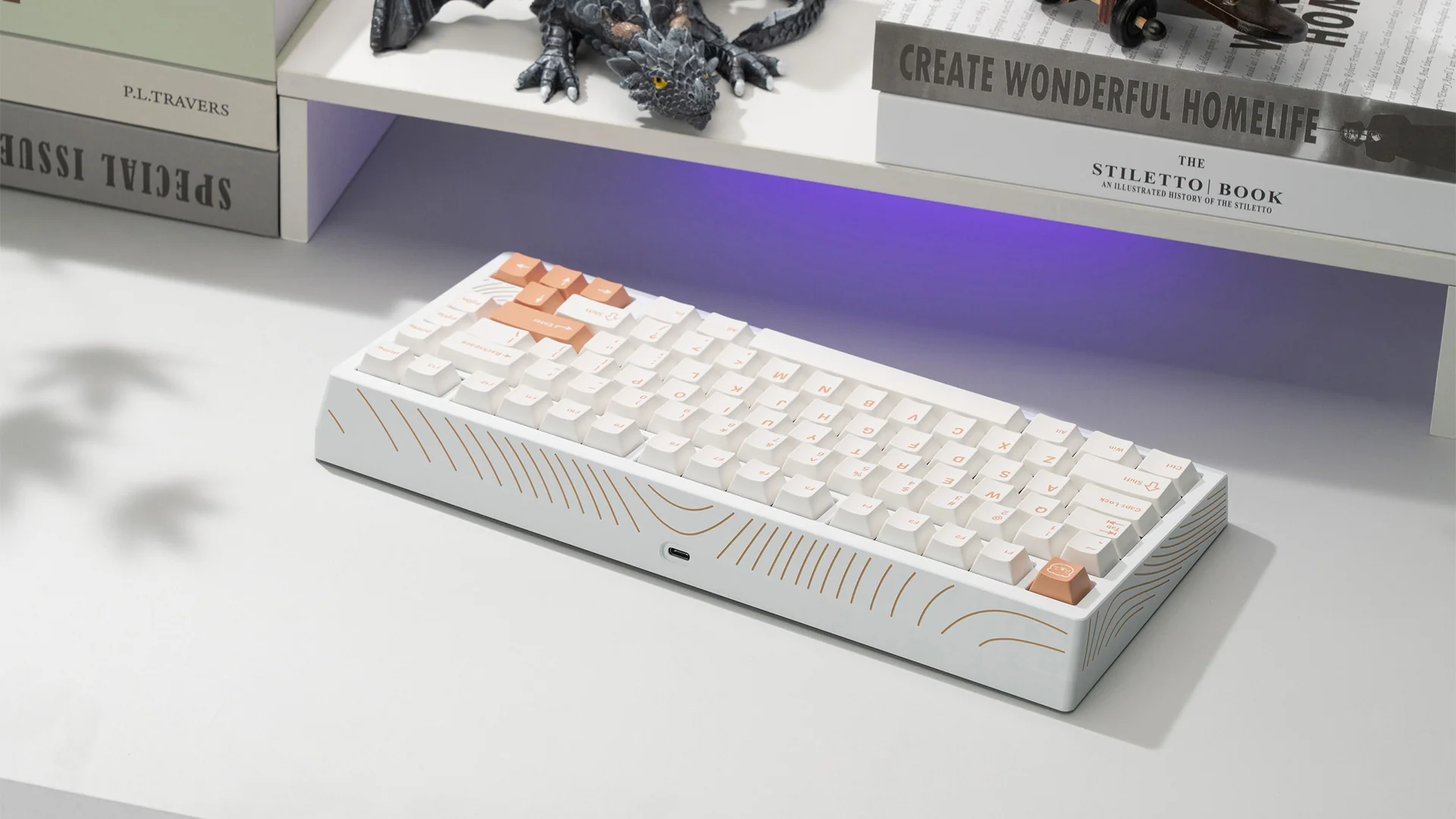

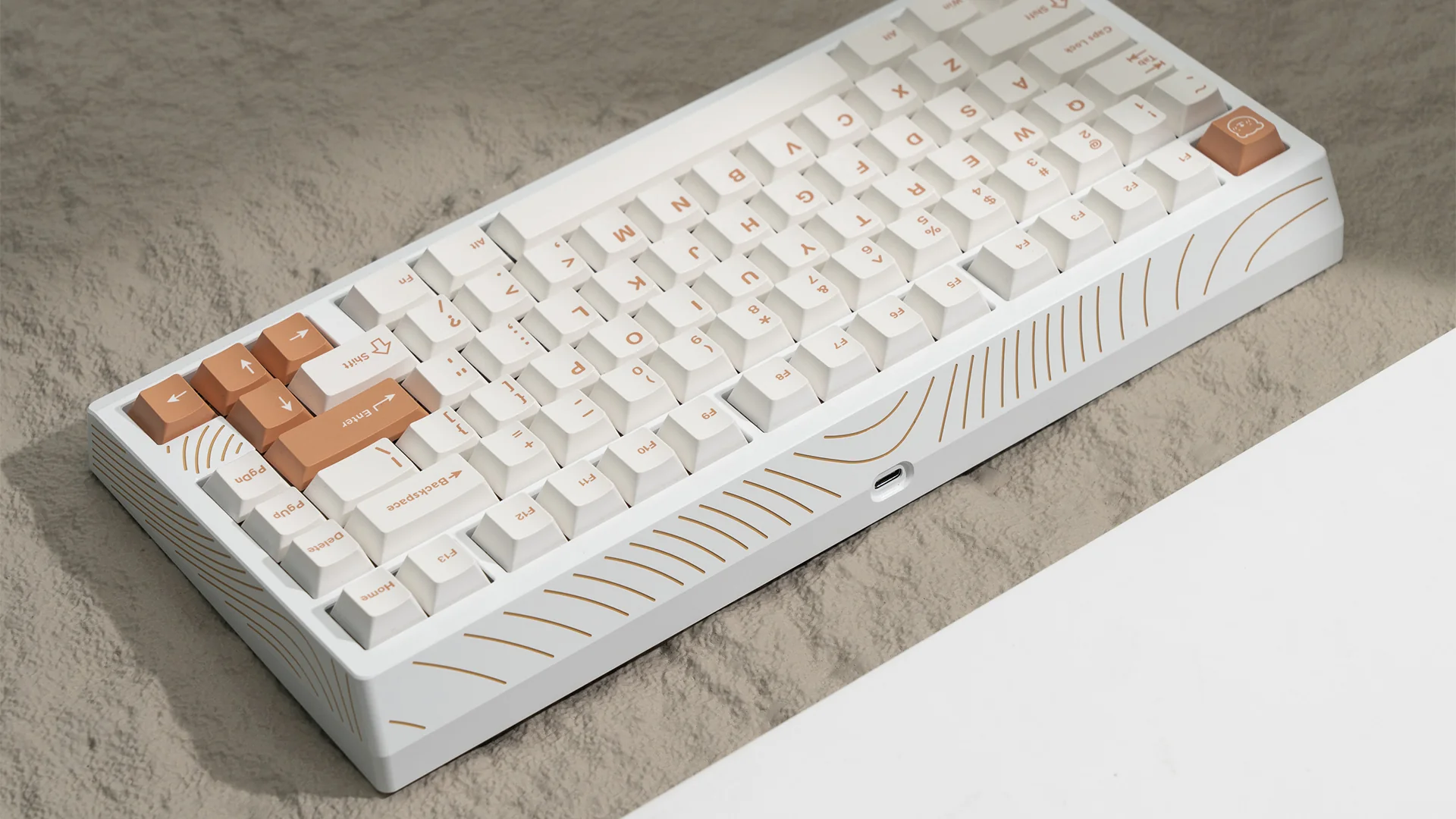

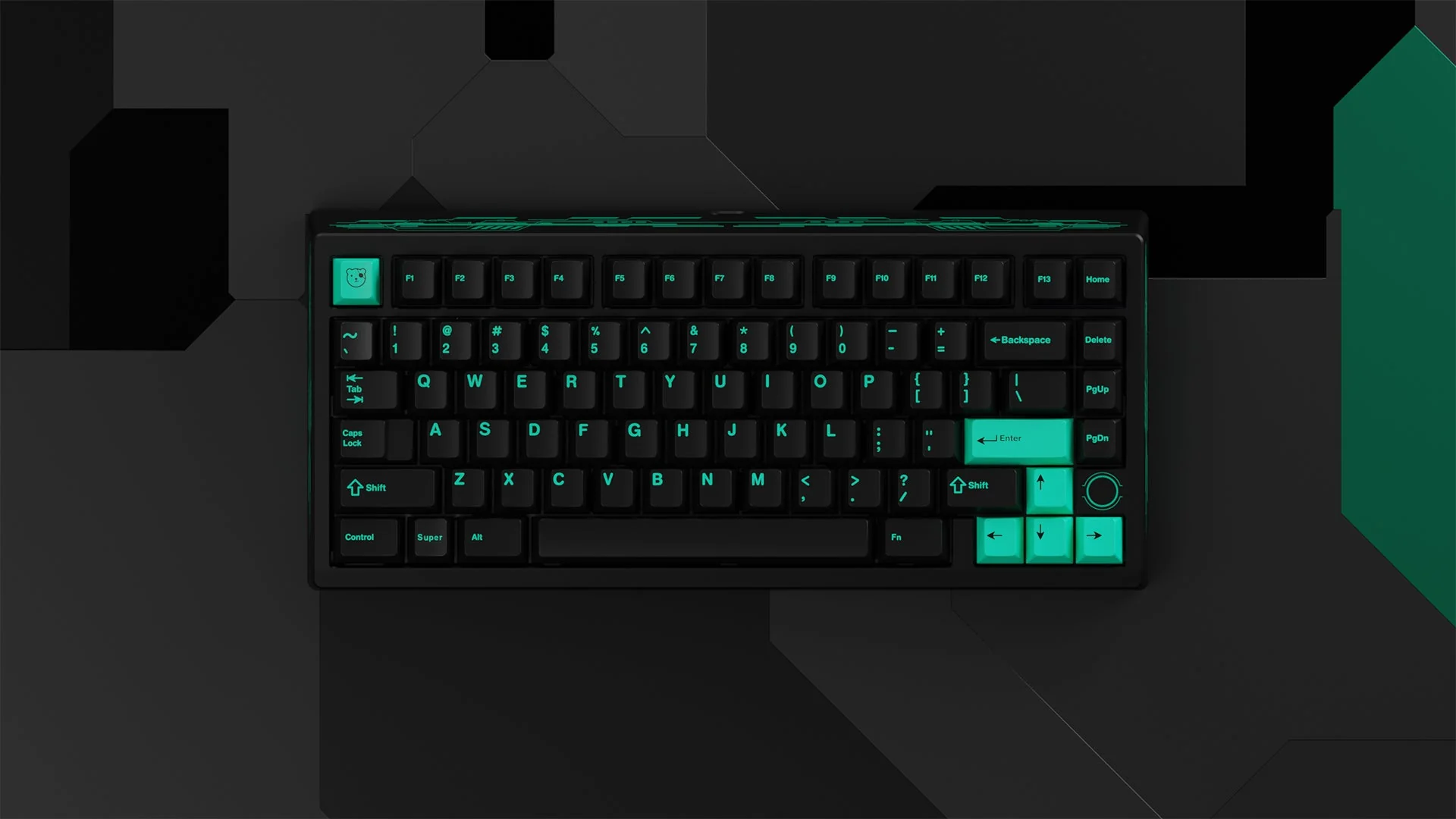

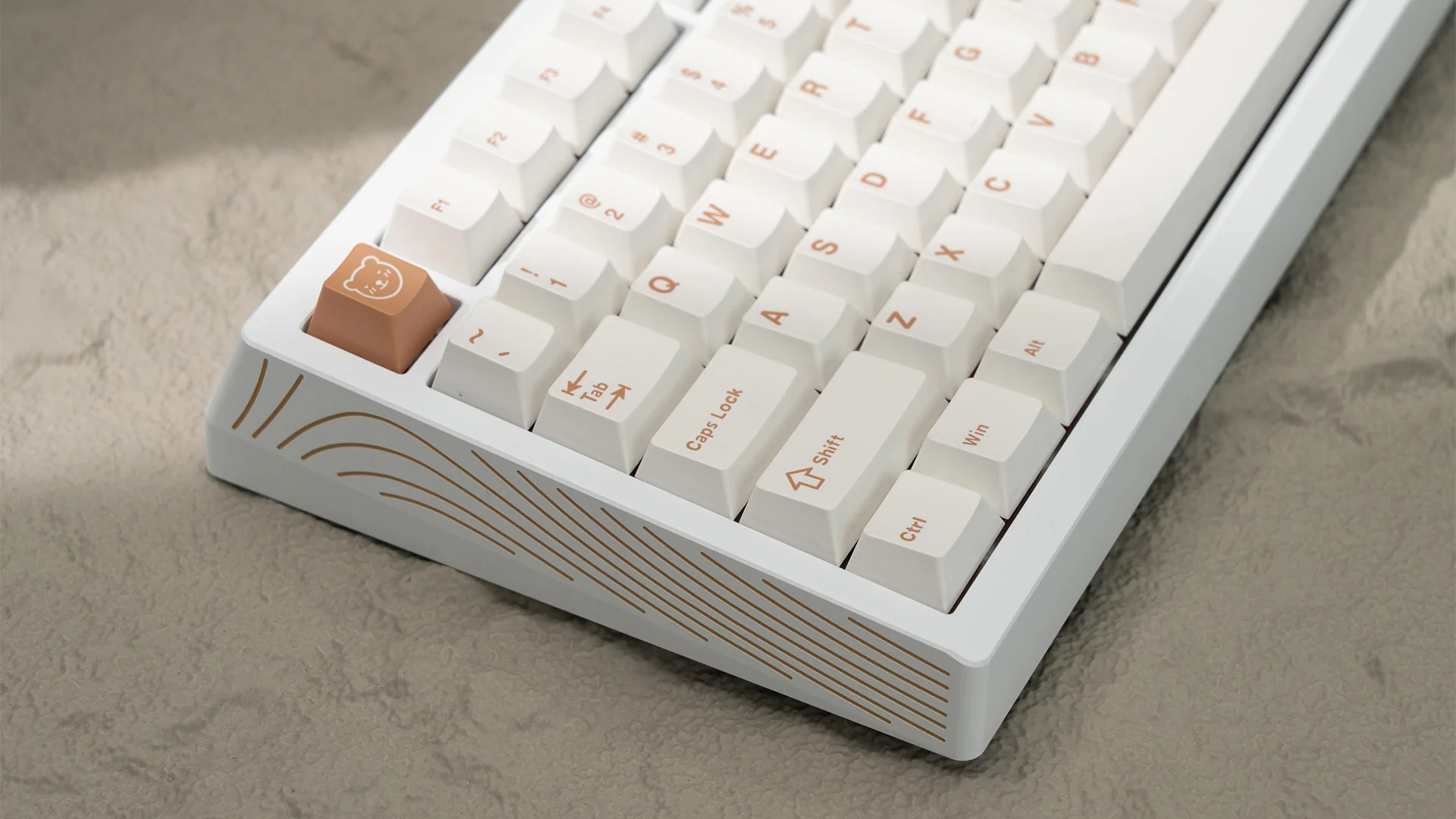

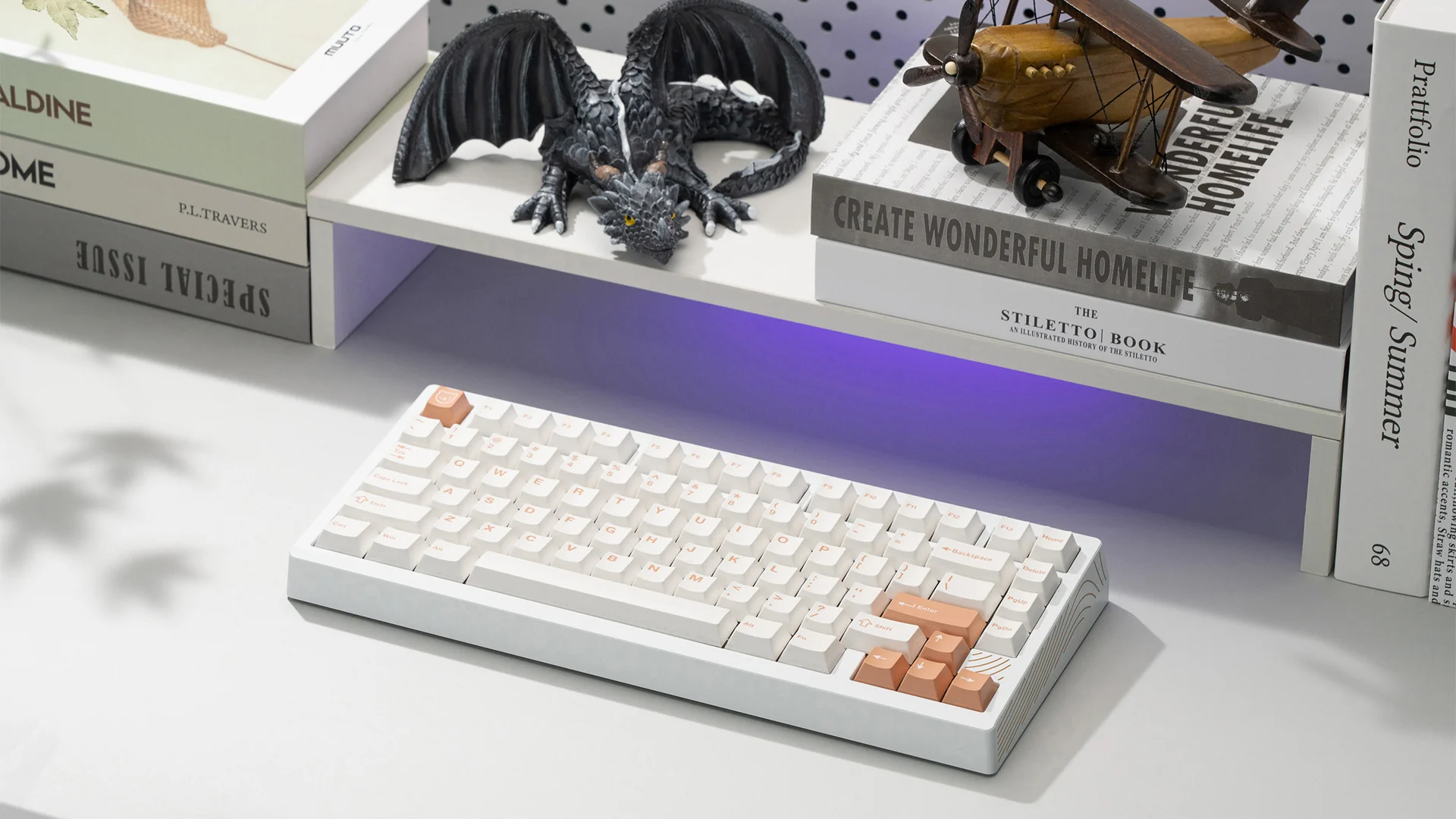

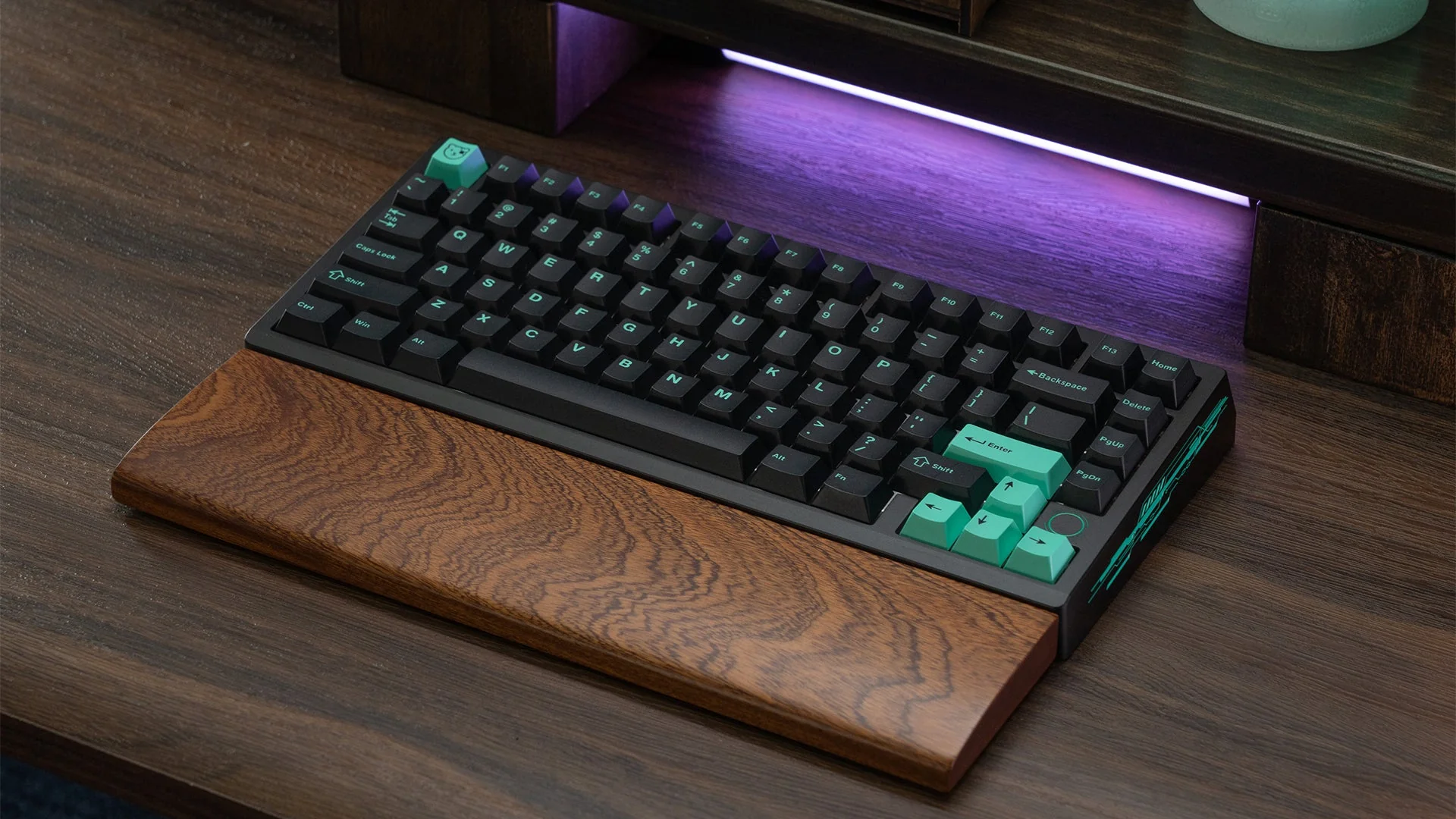

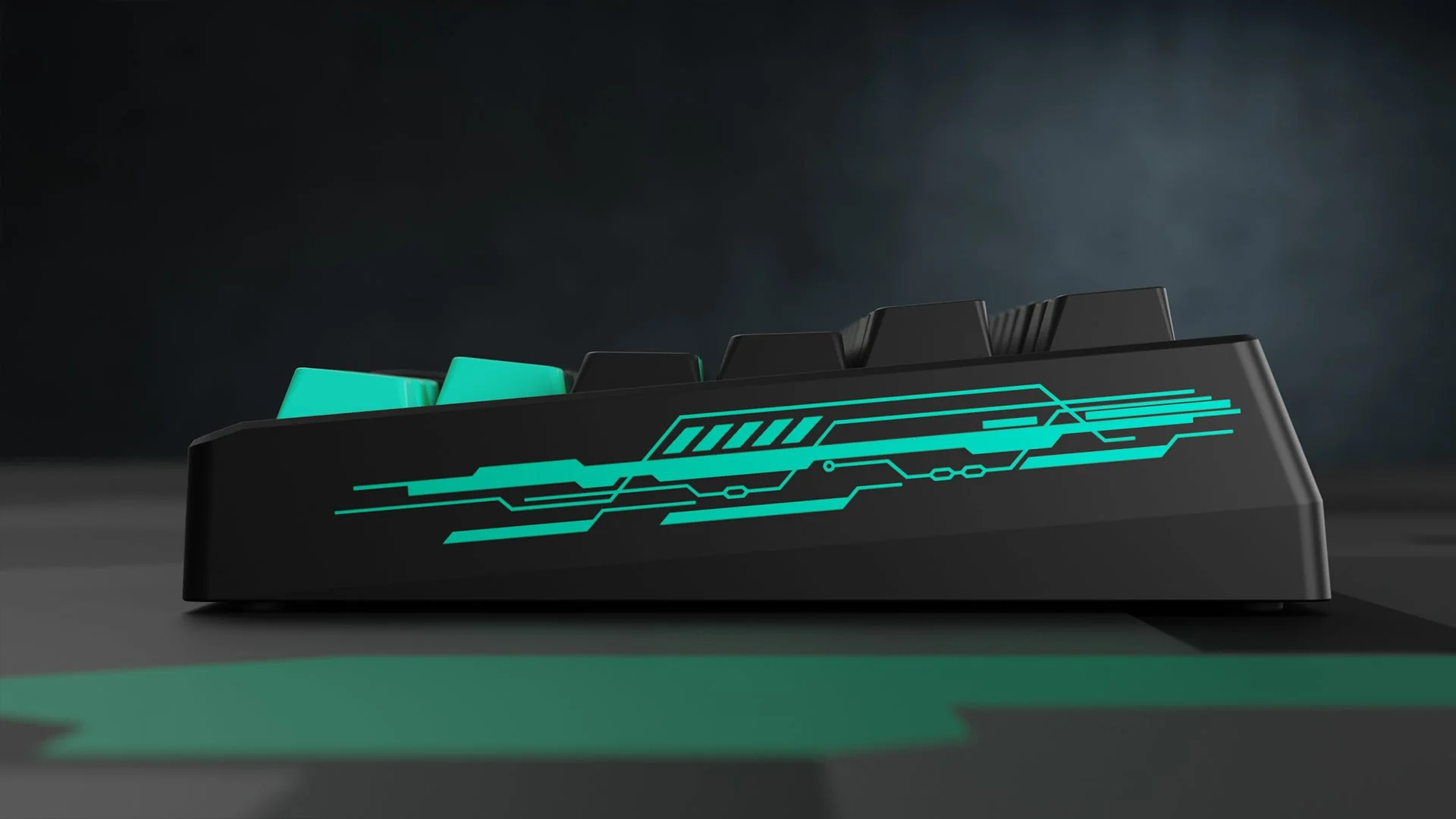

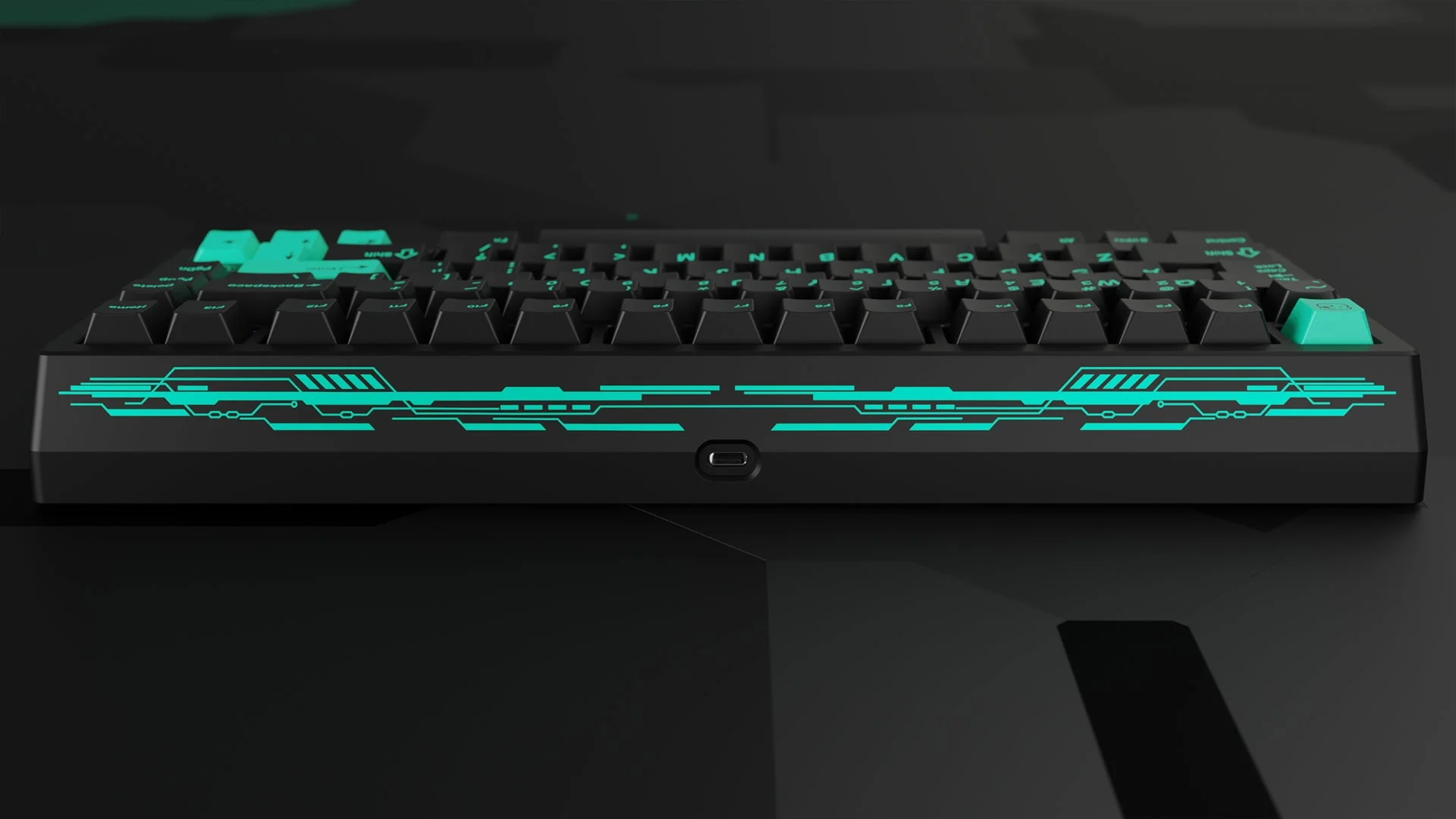

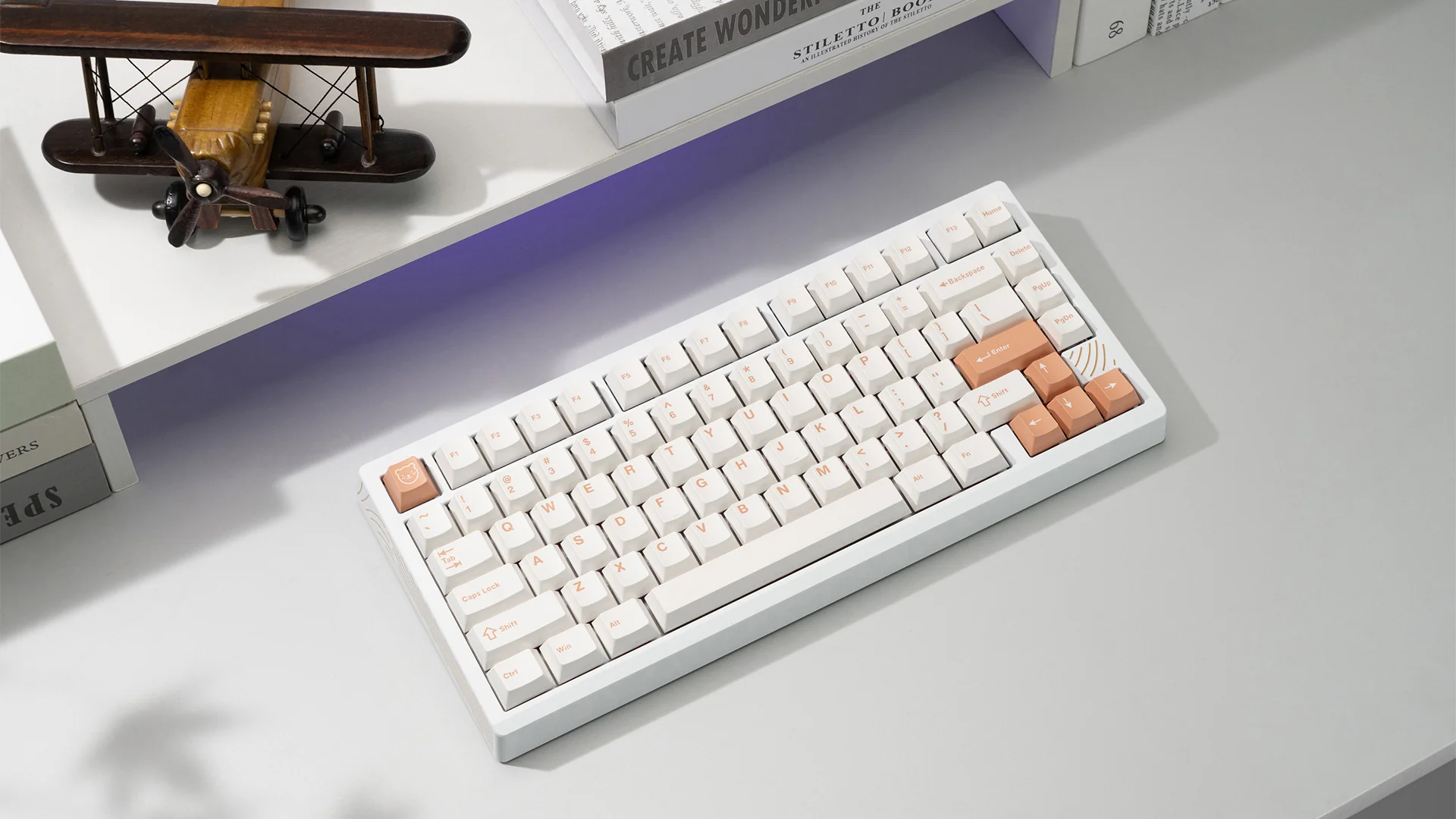

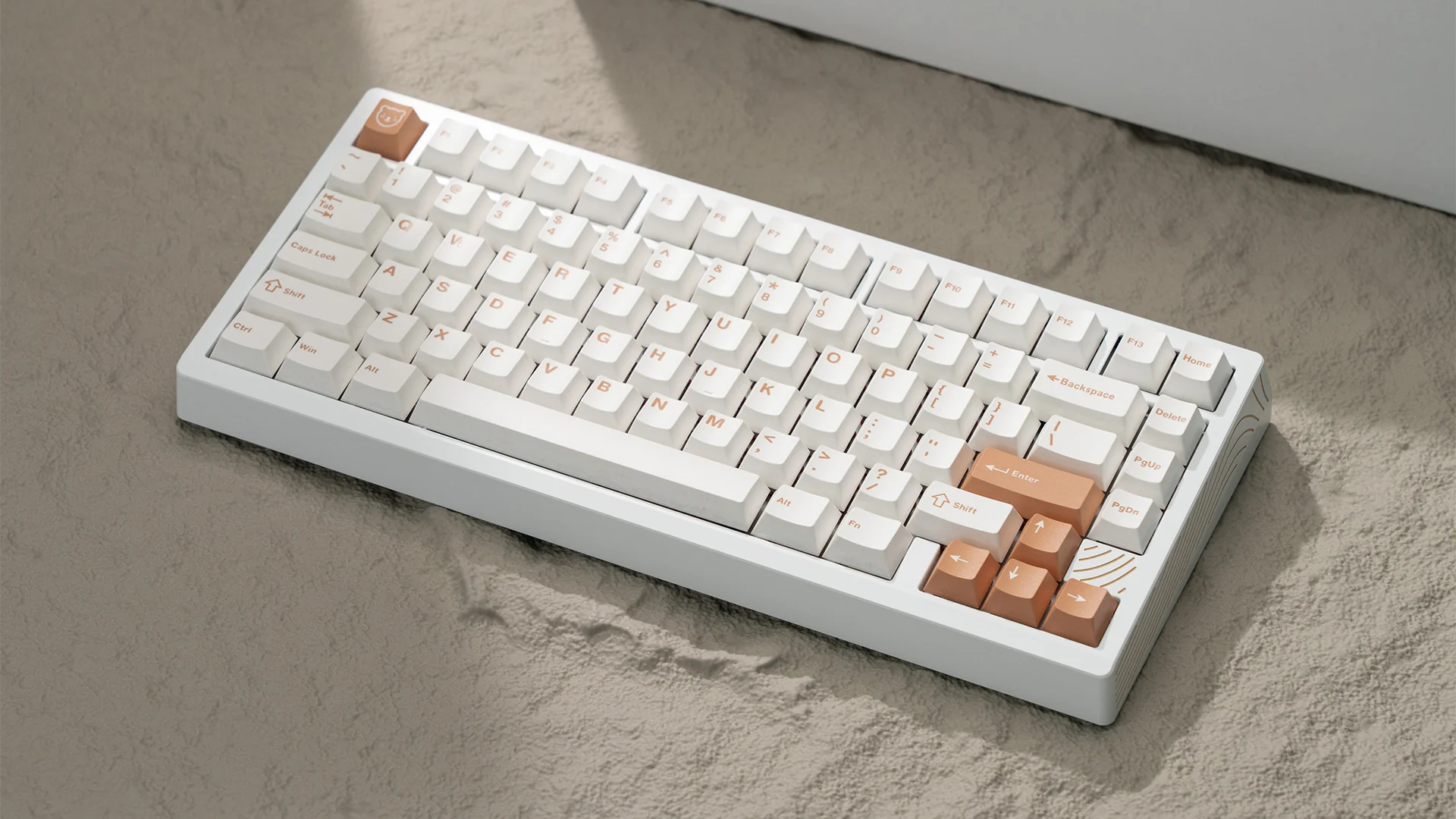

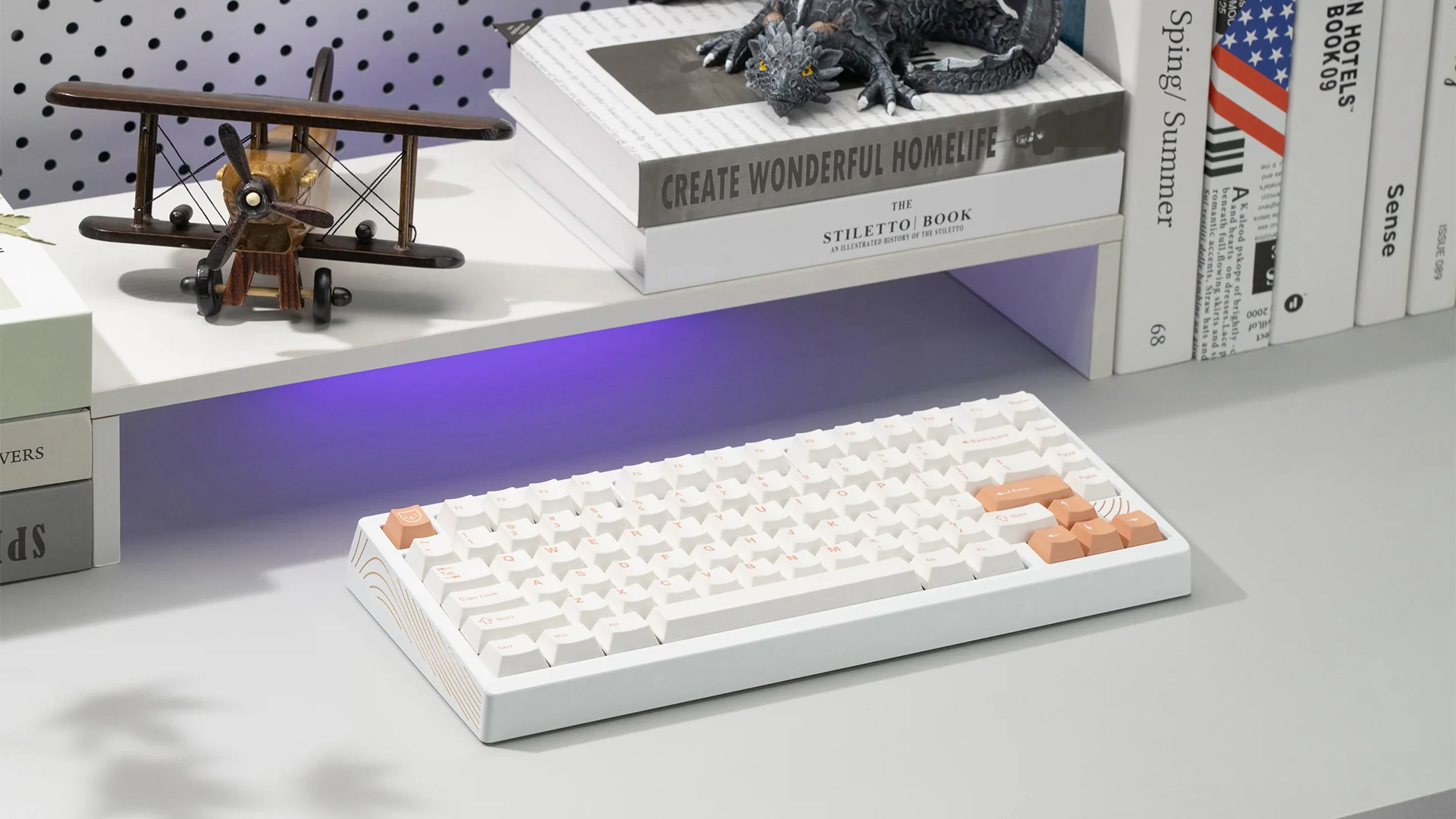

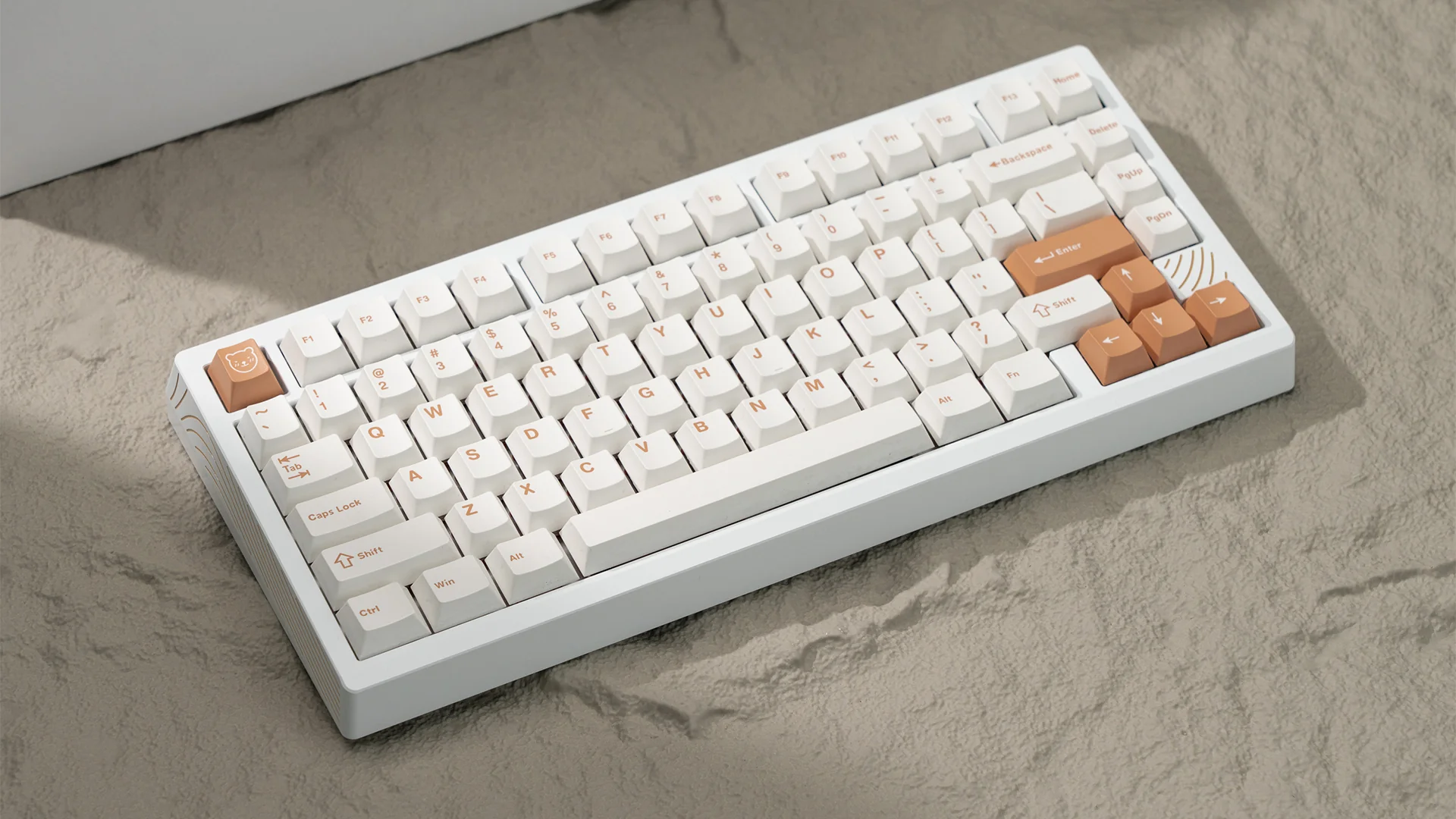

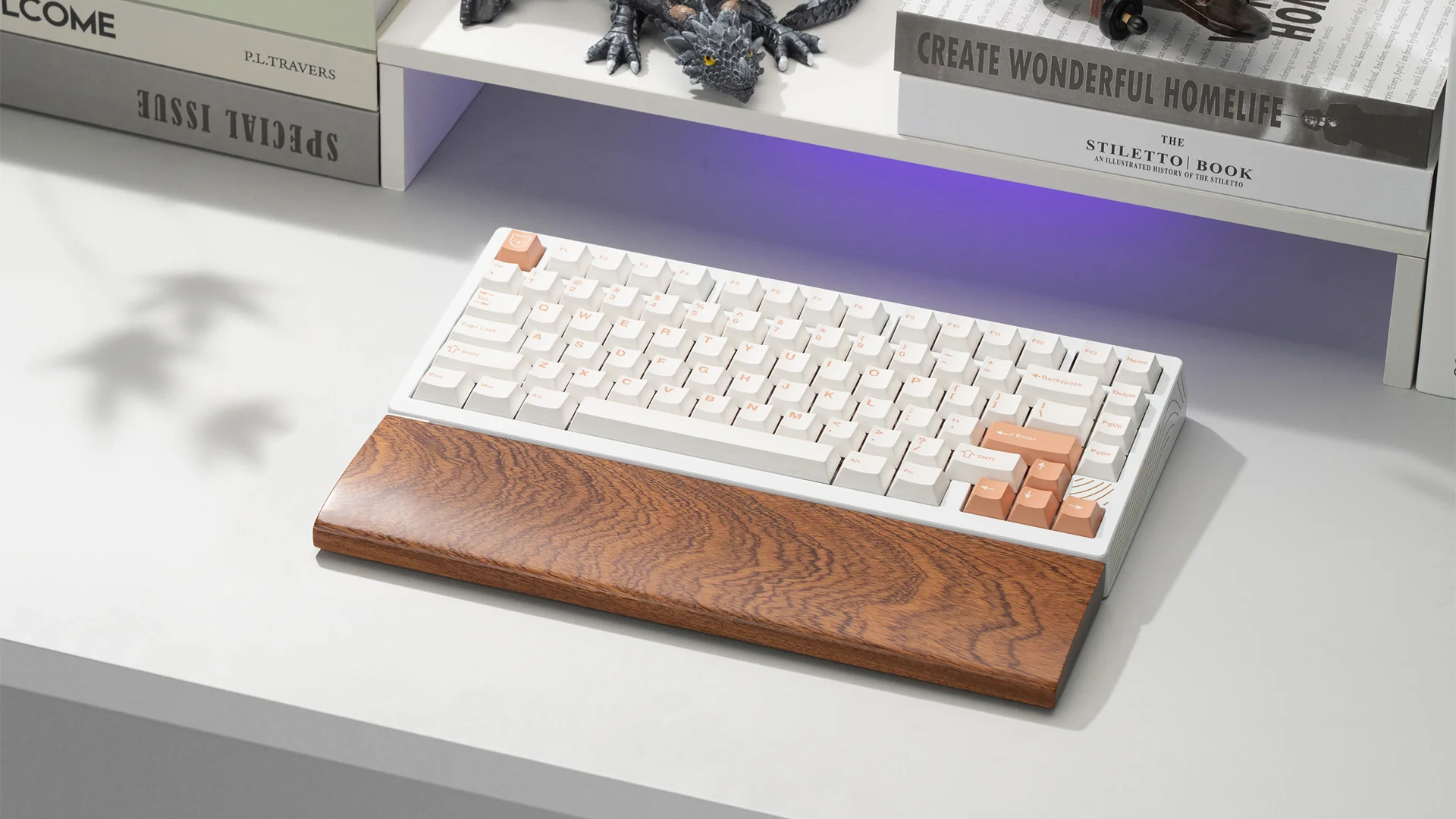

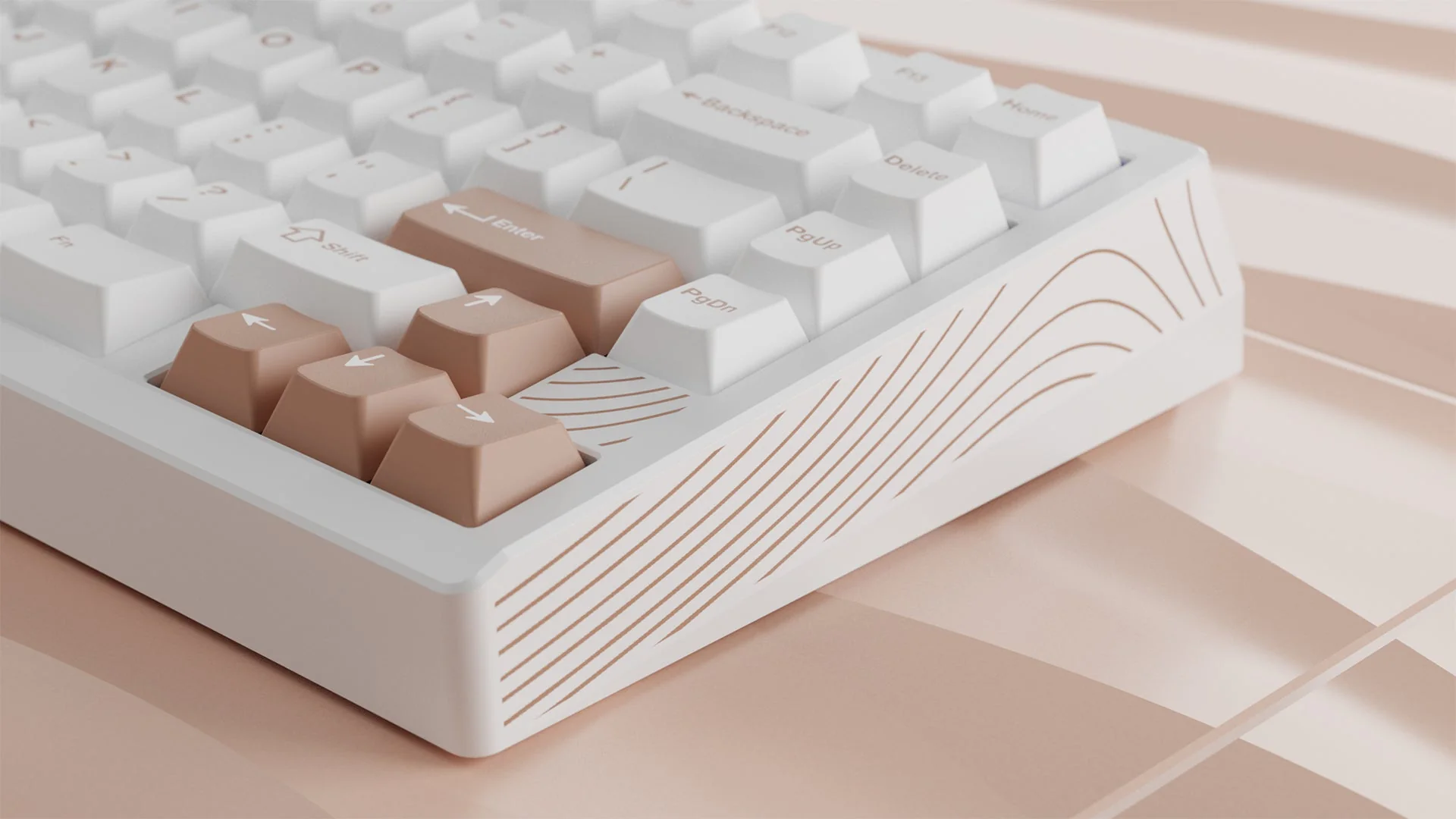

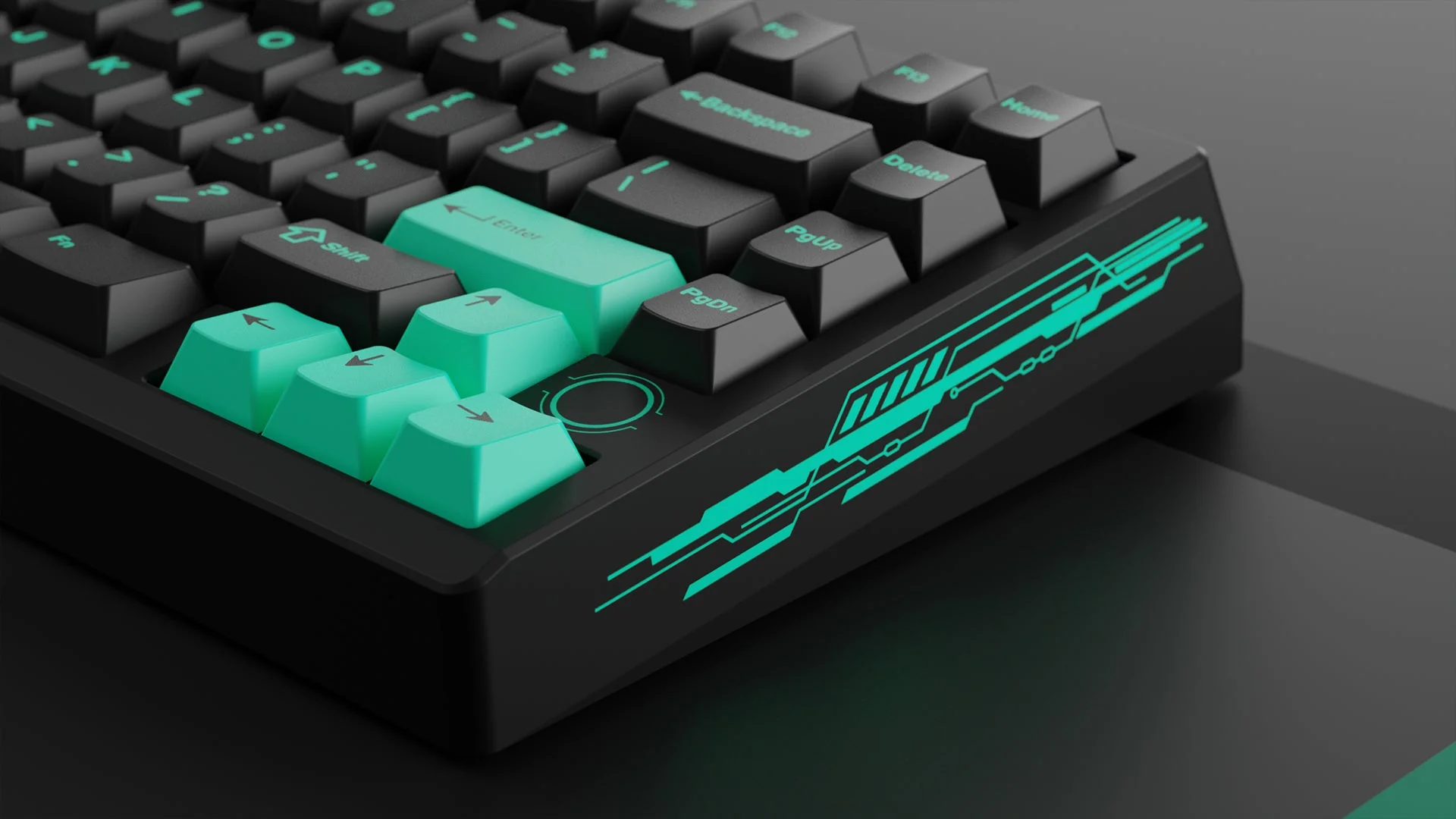

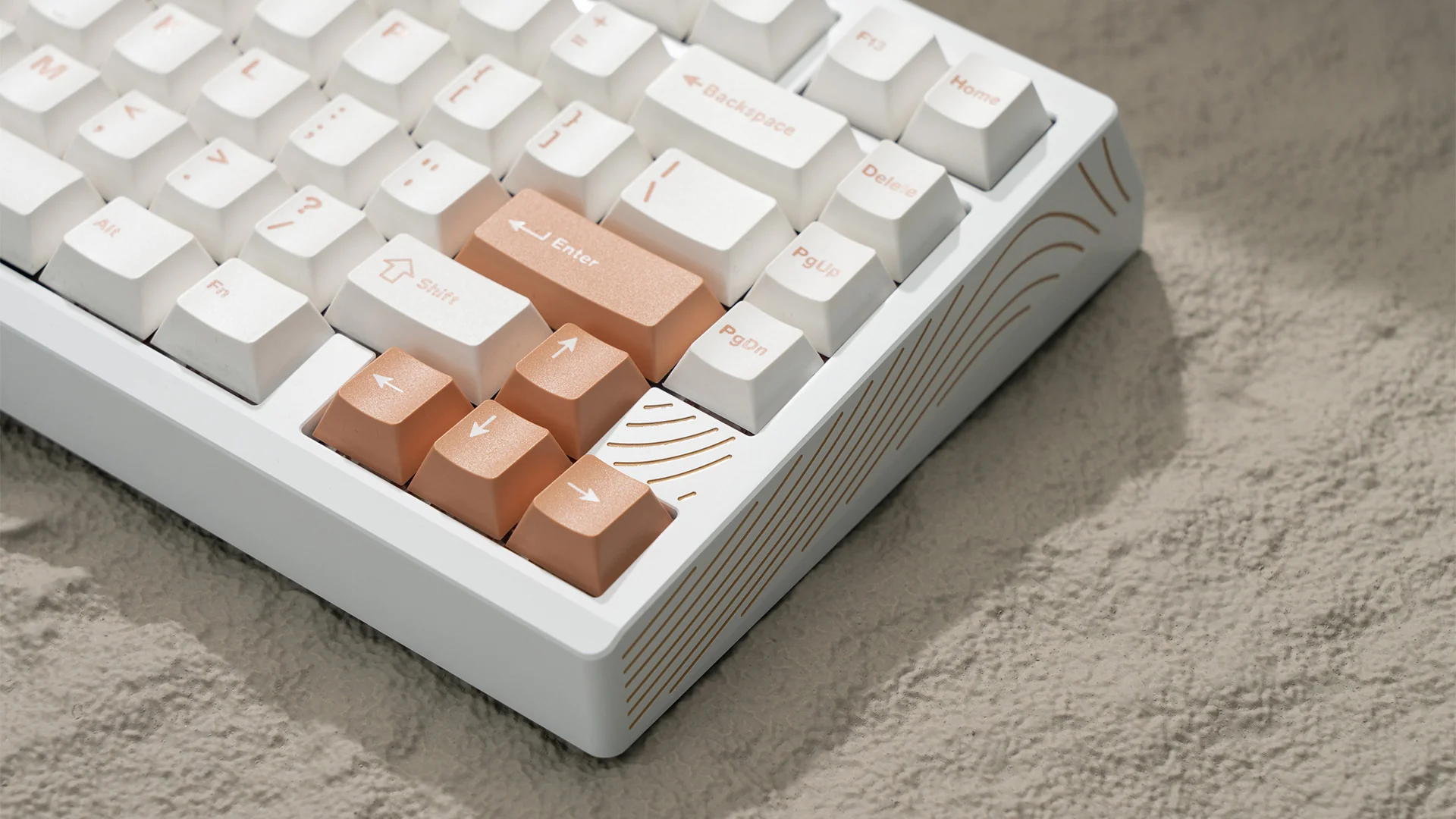

[In Stock] Meletrix BOOG75 Prebuilt

Keyboard Specifications:

Gasket Mount Design

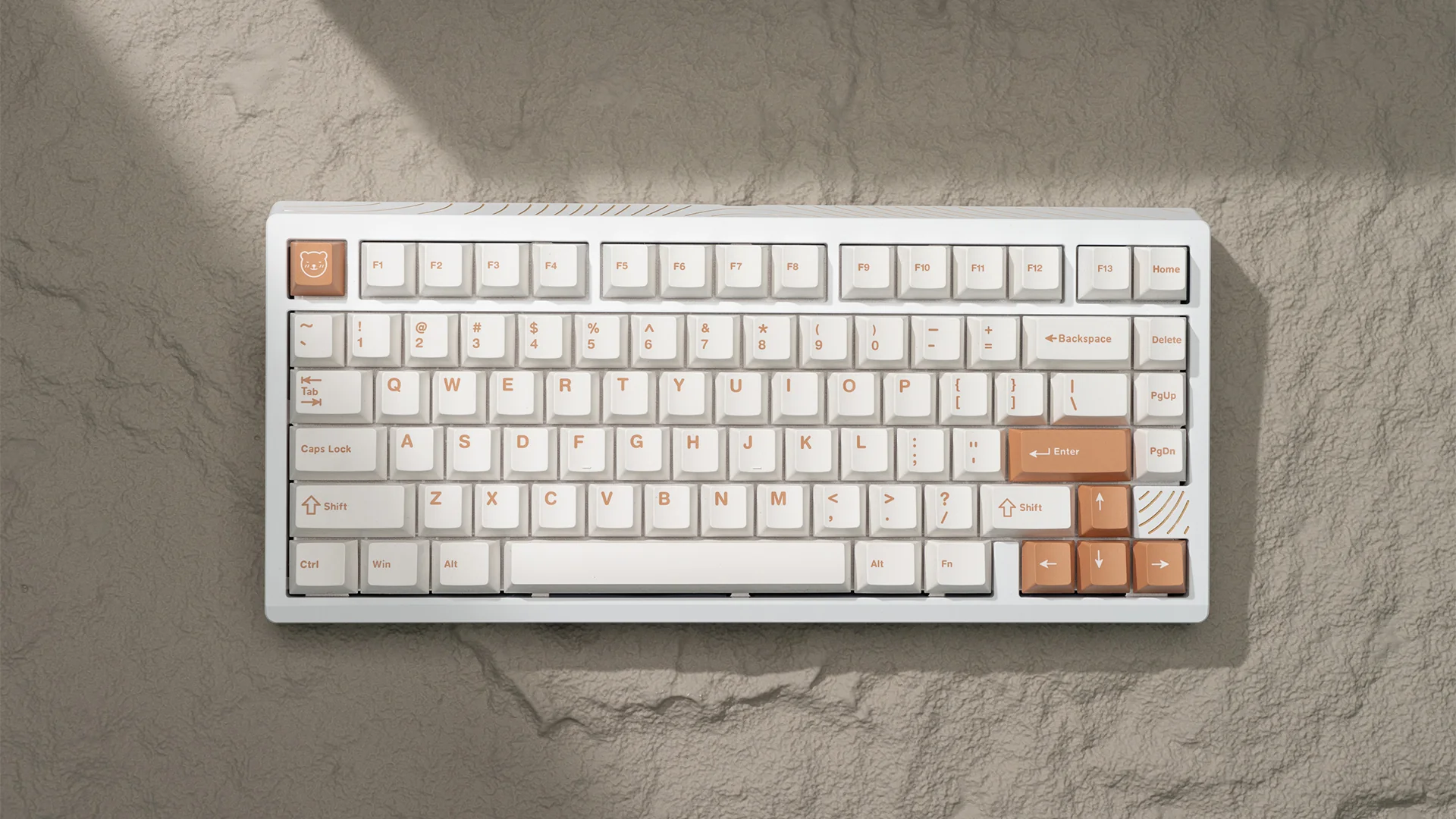

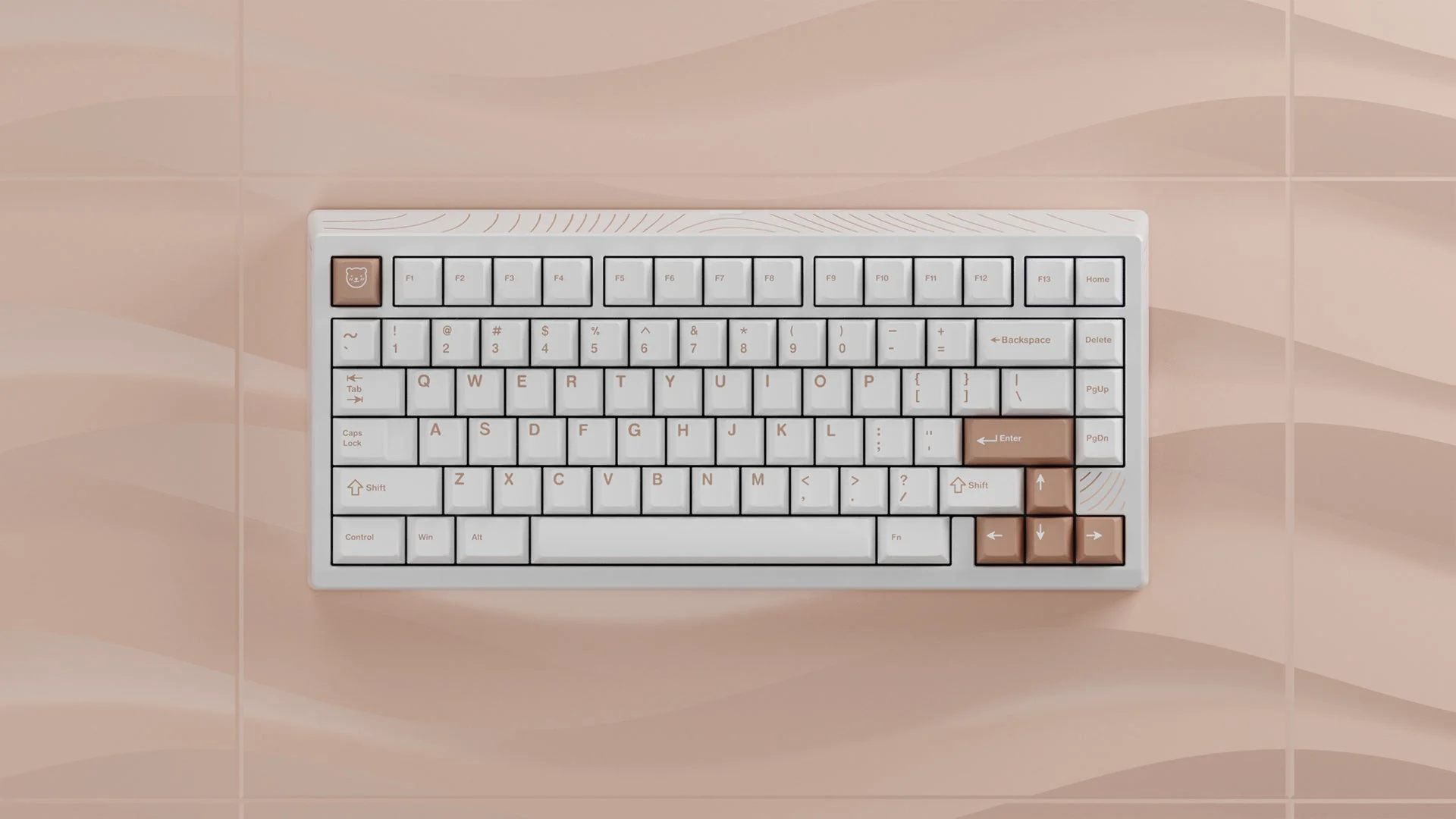

75% Layout
PCB: 1.6mm, with Ai03 DB

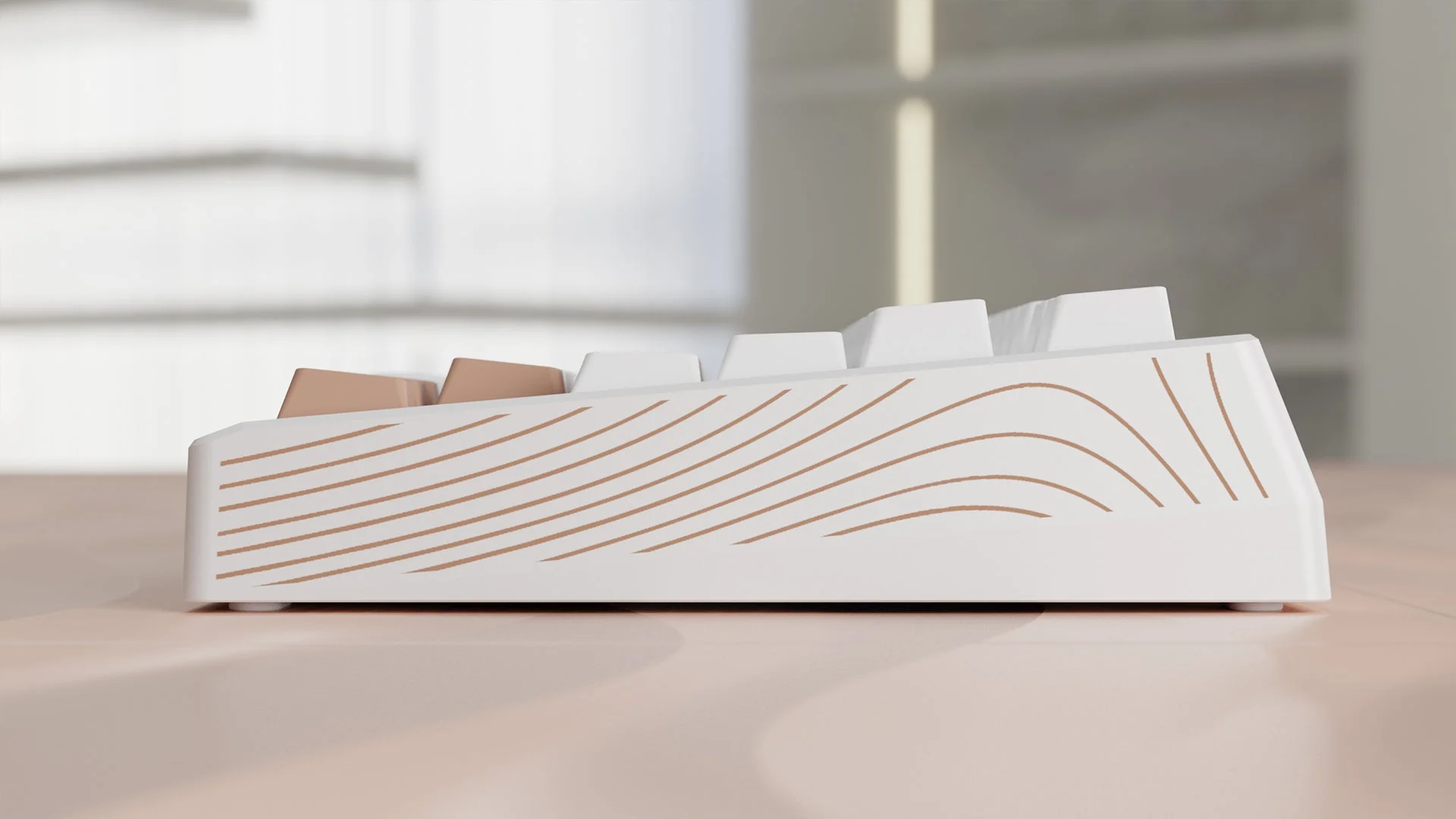

5° Typing angle
22.14 mm front height
Dimension: 323.6 x 145.78 x 34.73 (mm)
Default plate: Alu
Case Material: 6063 Aluminum
Case Finish: Anodized+Infill (No Sparkles, No Chamfer)

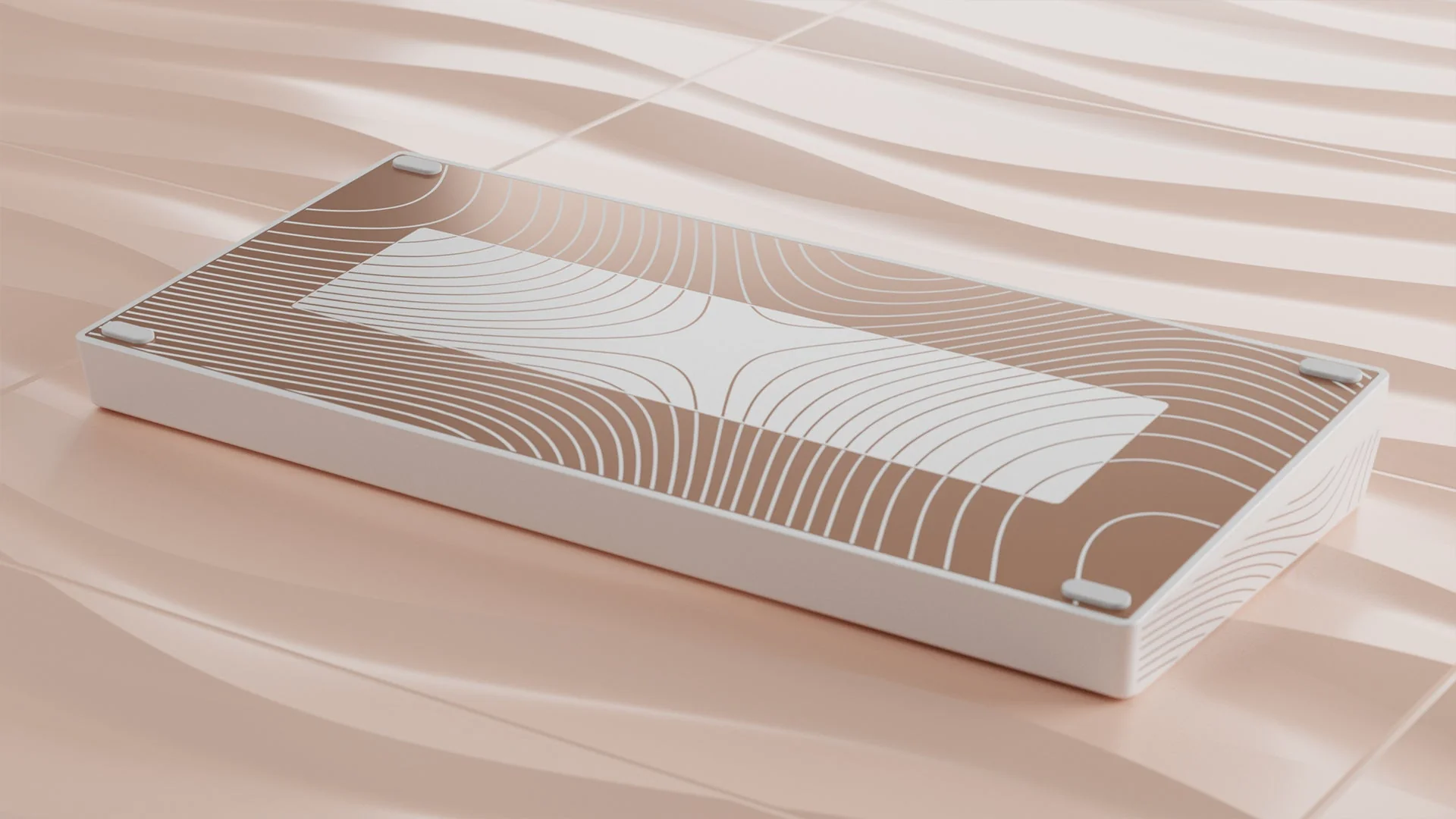

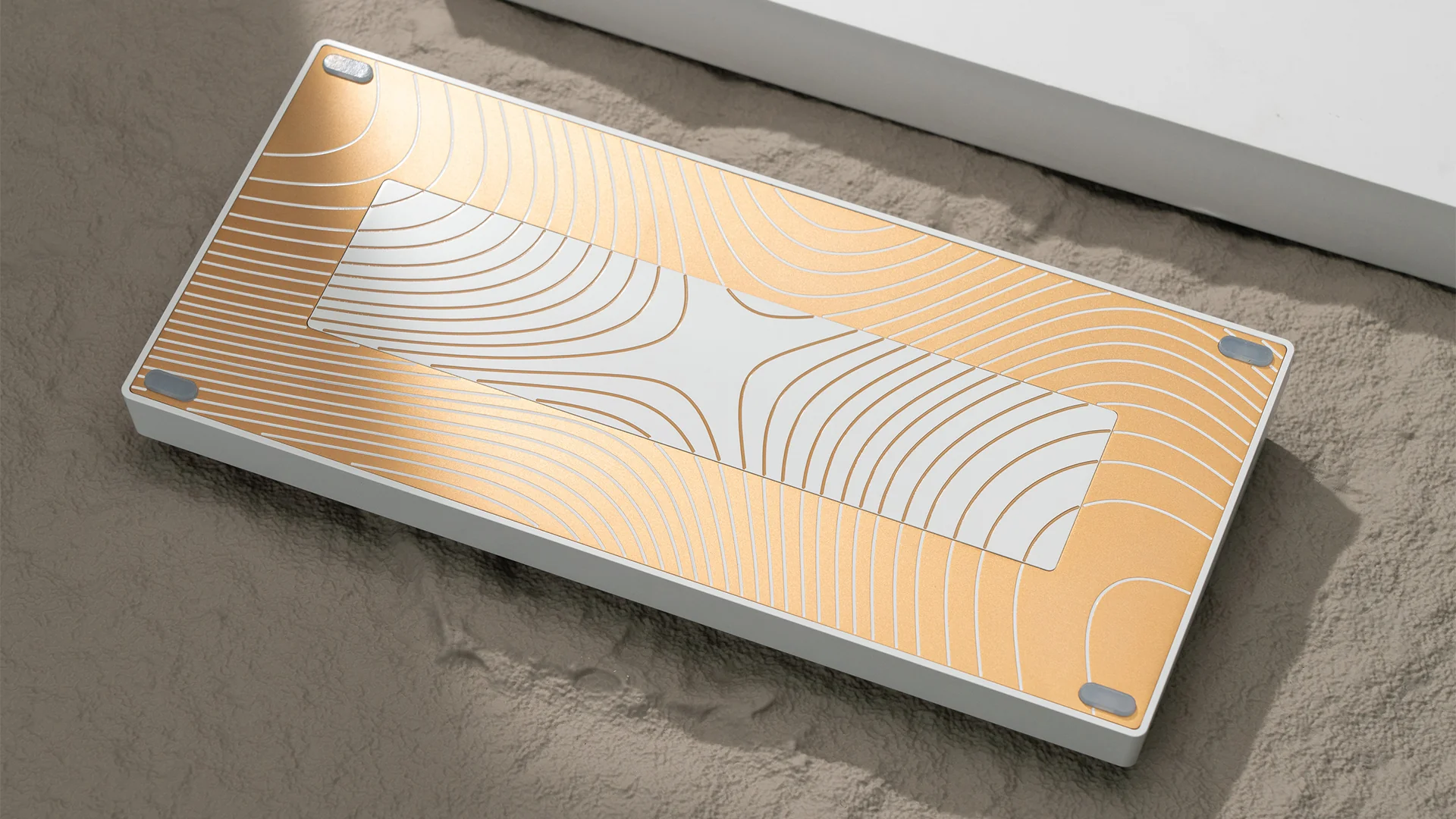

Backplate and External Weight: Anodized+Infill
Switches Type: Gateron KS37B
The Orientation of the Switches: North Facing
No SS Internal Weight
Boog 75 Wired Polling Rate: 1000hz
QMK or VIA Support: No, customization requires to use of our independent driver.
Total weight: About 3kg

Keycap Specifications:

Manufacturer: WS PBT
Keycap Material: Doubleshot PBT
Keycap Thickness: 1.6mm
Keycap Profile: Cherry
Keys QTY: 81 keys

Switch Specifications:

Product Name: GATERON KS-37B Magnetic Hall Sensor Keyboard Switch
Initial Force:30±10gf.
Total travel:4.0±0.2mm.
Operation Lifetime:150,000,000 Cycles.
Bottom Force: 50±10gf.
Top Housing Material: Thermoplastic, Transparent
Bottom Housing Material: Thermoplastic, Red
Stem Material: Thermoplastic, Red
Spring Material: Stainless steel

Highlights:

• Dual-rail structure for stability.
• Square magnet design, with freely adjustable magnetic pole orientation. Supports multi-directional Hall effect sensing.
• Extending the stem for better switch stability.
• Integrated spotlight lens design, enhancing light guidance.
• Every switch features a very tight housing and a very good coat of factory lube. No need to spend hours and hours lubing switches, they are good to go off the pack!

Kit Contents:

Fully Assembled Keyboard, including:

• Top and bottom cases
• HE Module(Magnetic Switch, Plate, Gasket, Sound absorbing foam, and PCB)
• Case foam
• The themed keycaps
• Tool accessories
