[In Stock] H60 PCB
This PCB DOES NOT work with the Singa Unikorn. The Unikorn uses a different JST placement. Additional PCBs from this can be ordered from Singa directly.
- 60%, GH60 layout/mounting
- USB Type-C connector
- Two variants:
- USB - USB Type-C. No JST connection. For boards with a USB cutout.
- JST - JST SH 4-pin connector. No USB Type-C. Use only with daughterboards.
- The missing connectors can be soldered onto both versions.
- JST Version only comes with PCB, no daughterboard, you can use ai03's Unified Daughterboard.
- RGB Underglow
- Compatible with QMK and VIA
- Cherry MX and Alps footprints
- Cherry PCB-mount stabilizer support
- Some models have RGB underglow on the bottom side of the PCB.
- This is an ANSI-only PCB, with bottom row support. See the product images for specific layouts!
- Black core FR4 + gloss red solder mask
- Split space: 2.75 + 1.5 + 2.75 (fits 7u spots)
- Nominal thickness is 1.60mm
Select Option
From $13.81
Original: $46.05
-70%[In Stock] H60 PCB—
$46.05
$13.81More Images
![[In Stock] H60 PCB - Image 2](https://img.getilumkb.shop/images/product/in-stock-h60-pcb-2.png)

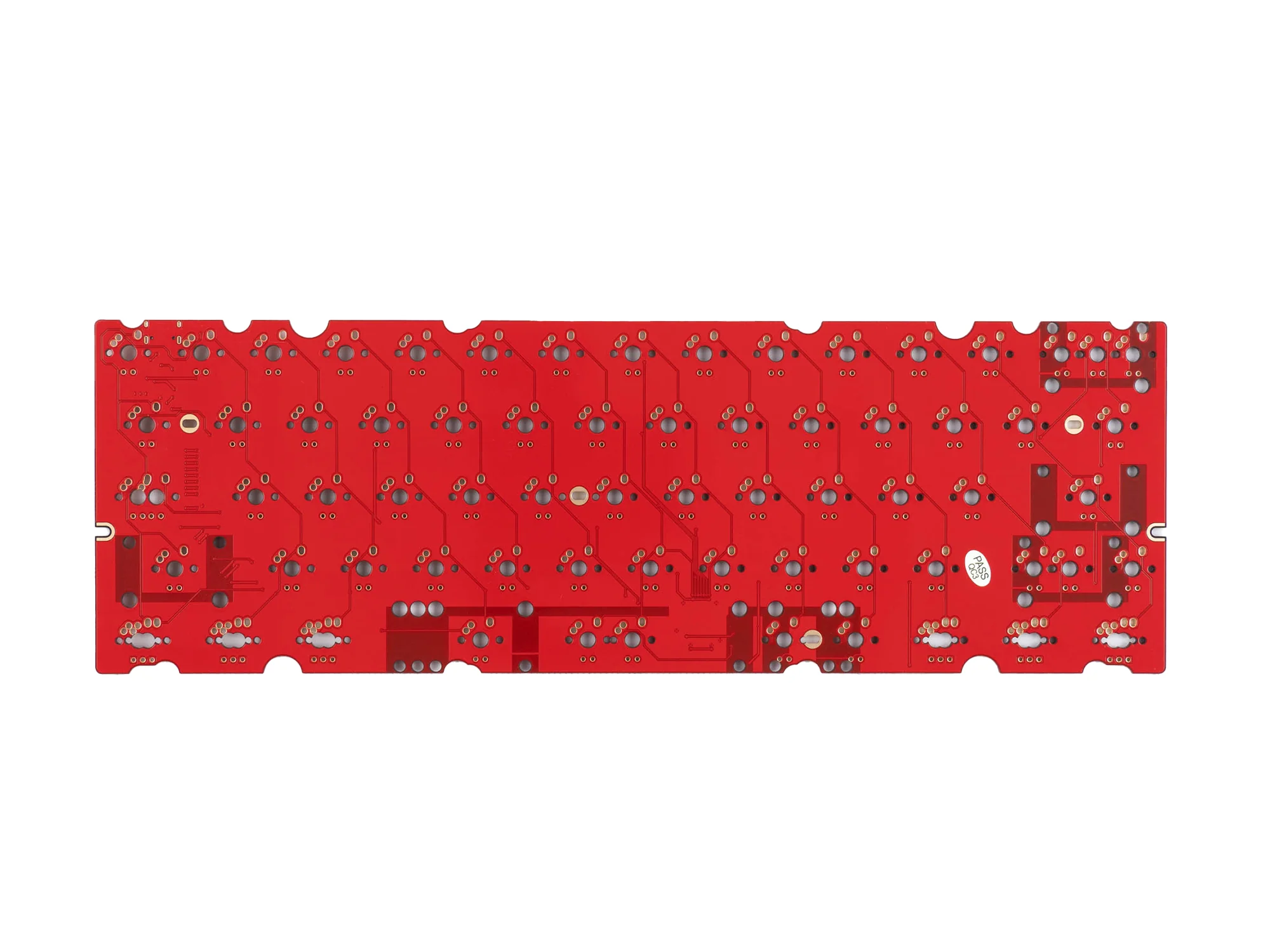

![[In Stock] H60 PCB - Image 3](https://img.getilumkb.shop/images/product/in-stock-h60-pcb-3.png)

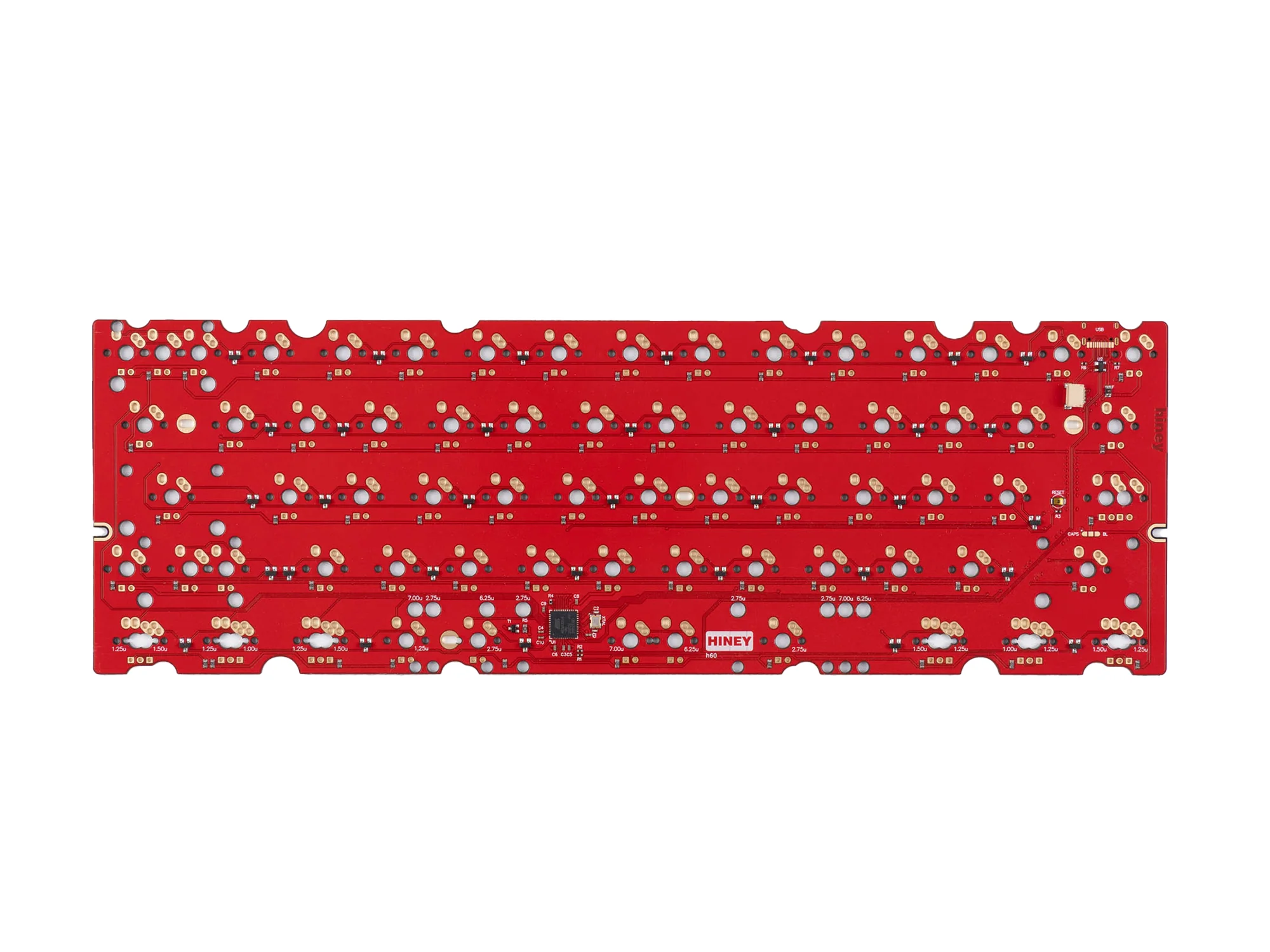

![[In Stock] H60 PCB - Image 4](https://img.getilumkb.shop/images/product/in-stock-h60-pcb-4.png)
